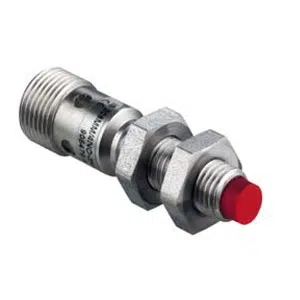

IS 108 MM/2NC-4N0-M12: 50129863 - Leuze M12 Connector Proximity Switch
Technical Specifications of Leuze IS 108 MM/2NC-4N0-M12 50129863:
| Spec | Value |
|---|---|
| Sensing Distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
Leuze M12 Connector Proximity Switch IS 108 MM/2NC-4N0-M12, 50129863 Technical Specifications:
| Specification | Value |
|---|---|
| Series | 108 |
| Sensing Distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | ≤ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 1,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M12 Connector |
| Number of conductors or Pins | 4-Pin |
| Design | Cylindrical |
| Dimension (Ø x L) | 12 mm x 70 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 12 x 12 mm², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 °C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze M12 Connector Proximity Switch IS 108 MM/2NC-4N0-M12 part no: 50129863 with budget-friendly prices. The Main Technical Parameters of IS 108 MM/2NC-4N0-M12, 50129863 feature 108 series, 4 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, NPN , NC (normally closed) , 1,000 Hz, 1 Piece(s) Connection, M12 Connector, 4-Pin, Cylindrical, 12 mm x 70 mm dimensions, Non-embedded, Metal, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze M12 Connector Proximity Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
