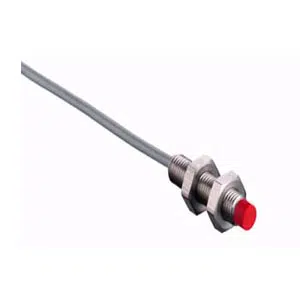

Leuze IS 108 MM/2NC-4N0 Proximity Sensor
The Leuze IS 108 MM/2NC-4N0 Proximity Sensor (Part No: ) offers a 4 mm sensing distance, 10 ... 30 V, DC supply voltage, Transistor, NPN NC (normally closed) output, PVC Cable, 2m Length connection, 3 -wire Conductors . Manufactured by Leuze under the Leuze Proximity Sensor category, this model belongs to the 104 & 108 Series.
| Brand | Leuze |
| Product Type | Proximity Sensor |
| Product | IS 108 MM/2NC-4N0 |
Leuze IS 108 MM/2NC-4N0 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Series | 108 Series |
| Sensing Distance | 4 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Number of digital switching outputs | 1 Piece(s) |
| Switching Current | 100 mA max. |
| Residual Current | 0.01 mA max. |
| Voltage drop | β€ 2 V |
| Switching Output | Transistor, NPN |
| Switching Principle | NC (normally closed) |
| Switching frequency, max. | 1,000 Hz |
| Number of connections | 1 Piece(s) |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC Cable, 2m Length |
| Number of conductors or Pins | 3 -wire Conductors |
| Design | Cylindrical |
| Dimension (Γ x L) | 8 mm x 45 mm |
| Type of installation | Non-embedded |
| Housing material | Metal |
| Sensing face material | Plastic, Polyoxymethylene (POM) |
| Housing color | Red, RAL 3000; Silver |
| Standard measuring plate | 12 x 12 mmΒ², Fe360 |
| Number of LEDs | 1 Piece(s) |
| Ambient temperature | -25 ... 70 Β°C |
| Degree of protection | IP 67 |
Mail Us for your needs in Leuze 45 mm Length Inductive Switch IS 108 MM/2NC-4N0 part no: 50129923 with budget-friendly prices. The Main Technical Parameters of IS 108 MM/2NC-4N0, 50129923 feature 108 series, 4 mm Sensing, 10 ... 30 V, DC power supply, 1 Piece(s) digital switching output, 100 mA max. current, Transistor, NPN , NC (normally closed) , 1,000 Hz, 1 Piece(s) Connection, PVC Cable, 2m Length, 3 -wire Conductors, Cylindrical, 8 mm x 45 mm dimensions, Non-embedded, Metal, Plastic, Polyoxymethylene (POM), Red, RAL 3000; Silver color, IP 67 degree of protection. Customize Your Experience with a Quote for your requirement of Leuze 45 mm Length Inductive Switch. Experience the difference with our competitive pricing and superior support over other Suppliers.
