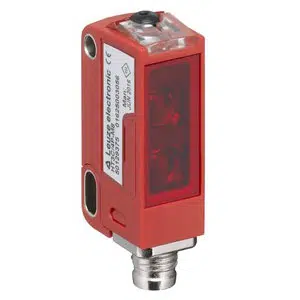

Leuze HT3C.S3/6X-M8 | 50141702
Technical Specifications of Leuze HT3C.S3/6X-M8 50141702:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 0.01 ... 0.08 m |
| Light Source | LED, Red |
| Wavelength | 645 nm |
Leuze 645 nm Wavelength Diffuse sensor HT3C.S3/6X-M8 - 50141702 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | Small light spot (S) Warning output |
| Sensing Distance | 0.01 ... 0.08 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 645 nm |
| Type of light spot geometry | Round |
| Light spot size [at sensor distance] | 4 mm [60 mm] |
| Measurement range | - |
| Supply voltage UB | 12 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 750 Hz |
| Response time | 0.66 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M8 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67/IP 69K |
IndMALL Automation Dealing offers HT3C.S3/6X-M8 50141702 at unbeatable prices. The Main Technical Parameters of HT3C.S3/6X-M8 are Cubic, Design Diffuse reflection principle with background suppression, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, Push-pull Switching Outputs1, Light switching (PNP)/dark switching (NPN) Switching principle, Connector, M8 Thread size, PC-ABS, Plastic Housing material, IP 67/IP 69K degree of protection. Take the First Step with a Quote for your requirement of Leuze 645 nm Wavelength Diffuse sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
