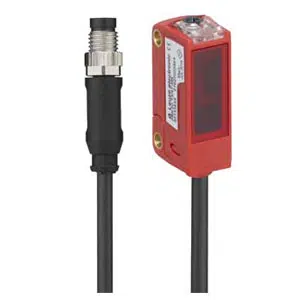

Leuze HT3C.BV/4P-200-M12 | 50133612
Technical Specifications of Leuze HT3C.BV/4P-200-M12 50133612:
| Spec | Value |
|---|---|
| Design | Cubic |
| Sensing Distance | 0.015 ... 0.15 m |
| Light Source | LED, Red |
| Wavelength | 633 nm |
Leuze Transistor, PNP Switching output Diffuse Sensor HT3C.BV/4P-200-M12 - 50133612 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | V-optics |
| Sensing Distance | 0.015 ... 0.15 m |
| Beam path | Focused |
| Light source | LED, Red |
| Wavelength | 633 nm |
| Type of light spot geometry | Round |
| Light spot size [at sensor distance] | - |
| Measurement range | - |
| Supply voltage UB | 10 ... 30 V, DC, Incl. residual ripple |
| Switching Output 1 | Transistor, PNP |
| Switching principle | Light switching |
| Switching Output 2 | Transistor, PNP |
| Switching principle | Dark switching |
| Switching frequency | 1,000 Hz |
| Response time | 0.5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable with connector |
| Cable length | 200 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | - |
| Wire cross section | 0.2 mm² |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 4 -pin |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Housing material | Plastic |
| Plastic housing | PC-ABS |
| Lens cover material | Plastic / PMMA |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Multiturn potentiometer |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67/IP 69K |
Talk to Our Engineer for HT3C.BV/4P-200-M12 50133612 with exclusive offers. Core System Specifications of HT3C.BV/4P-200-M12 are Cubic, Design Diffuse reflection principle with background suppression, 11.4 mm x 34.2 mm x 18.3 mm Dimension, LED, Red Light source, Transistor, PNP Switching Outputs1, Light switching Switching principle, Cable with connector, Plastic Sheathing material, PC-ABS, Plastic Housing material, IP 67/IP 69K degree of protection. Don't Miss Out on a Quote for your requirement of Leuze Transistor, PNP Switching output Diffuse Sensor. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
