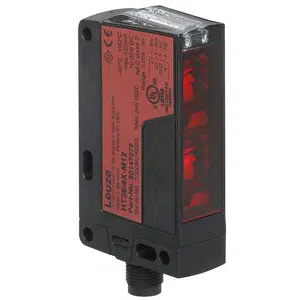

Leuze HT36I/2X-M12 | 50147093
Technical Specifications of Leuze HT36I/2X-M12 50147093:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.01 ... 2.5 m |
| Light Source | LED, Infrared |
Leuze 20.5 mm x 76.3 mm x 44 mm Dimensions diffuse sensor HT36I/2X-M12 - 50147093 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | - |
| Sensing Distance | 0.01 ... 2.5 m |
| Beam path | Focused |
| Light source | LED, Infrared |
| Wavelength | 860 nm |
| Type of light spot geometry | Rectangular |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, NPN |
| Switching principle | Light switching |
| Switching Output 2 | - |
| Switching principle | - |
| Switching frequency | 250 Hz |
| Response time | 2 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Stainless steel |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Housing material | Plastic |
| Plastic housing | |
| Lens cover material | Plastic / PMMA |
| Housing color | Black |
| Type of display | LED |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
Give Us a Call for Leuze 20.5 mm x 76.3 mm x 44 mm Dimensions diffuse sensor HT36I/2X-M12 part no: 50147093 at affordable rates. Specifications Overview for HT36I/2X-M12, 50147093 includes Cubic, Design Diffuse reflection principle with background suppression, 20.5 mm x 76.3 mm x 44 mm Dimension, LED, Infrared Light source, Transistor, NPN Switching Outputs 1, Light switching Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.01 ... 2.5 m Sensing Distance, Connector Type of connection, Plastic Housing material, IP 67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of Leuze 20.5 mm x 76.3 mm x 44 mm Dimensions diffuse sensor. We're committed to offering more favorable pricing and more responsive support than other Distributors.
