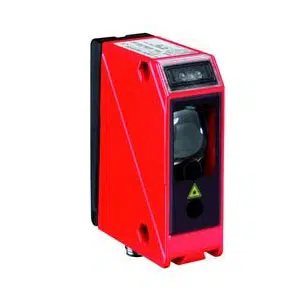

Leuze HRTL 96B M/66.02S-S12 Photoelectric Sensor
The Leuze HRTL 96B M/66.02S-S12 Photoelectric Sensor (Part No: 50113800 ) offers a Cubic design, Transistor, Push-pull output, M12 Connector, 5 -pin . Manufactured by Leuze under the Leuze Photoelectric Sensor category, this model belongs to the 96 Series.
| Brand | Leuze |
| Product Type | Photoelectric Sensor |
| Product | HRTL 96B M/66.02S-S12 |
Leuze HRTL 96B M/66.02S-S12 Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | 2 independent switching outputs Small light spot (S) |
| Sensing Distance | 0.1 ... 6 m |
| Beam path | - |
| Light source | Laser, Red |
| Wavelength | 658 nm |
| Type of light spot geometry | - |
| Supply voltage UB | 18 ... 30 V, DC |
| Analog Output 1 | - |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Dark switching |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching |
| Switching frequency | 10 Hz |
| Response time | 5 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Metal |
| Lens cover material | Glass |
| Housing color | Red |
| Type of display | LED |
| Operational controls | Teach button |
| Ambient temperature, operation | -40 ... 50 °C |
| Ambient temperature, storage | -35 ... 70 °C |
| Degree of protection | IP 67 / IP 69K |
Please speak to our Technical Engineer for Leuze 380 g Net weight diffuse sensor HRTL 96B M/66.02S-S12 part no: 50113800 at attractive prices. Technical Specs Summary of HRTL 96B M/66.02S-S12, 50113800 includes Cubic, Design Diffuse reflection principle with background suppression, 30 mm x 90 mm x 70 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs 1, Dark switching Switching principle, 18 ... 30 V, DC Supply voltage UB, 0.1 ... 6 m Sensing Distance, 5 -pin No. of pins, Metal Housing material, IP 67 / IP 69K degree of protection. Match Your Needs with a Quote for your requirement of Leuze 380 g Net weight diffuse sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
