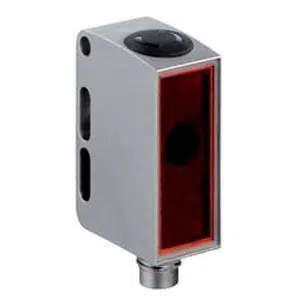

Leuze HRTL 55/66,5000 | 50115205
Technical Specifications of Leuze HRTL 55/66,5000 50115205:
| Spec | Value |
|---|---|
| Design | Cubic |
| Operating Principle | Diffuse reflection principle with background suppression |
| Sensing Distance | 0.015 ... 0.4 m |
| Light Source | Laser, Red |
Leuze 110 g Net weight diffuse sensor HRTL 55/66,5000 - 50115205 Technical Specifications:
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Special version | All stainless steel housing |
| Sensing Distance | 0.015 ... 0.4 m |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Type of light spot geometry | Round |
| Supply voltage UB | 10 ... 30 V, DC |
| Switching Output 1 | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Switching Output 2 | Transistor, Push-pull |
| Switching principle | Dark switching (PNP)/light switching (NPN) |
| Switching frequency | 2,000 Hz |
| Response time | 0.25 ms |
| Function | Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 5,000 mm |
| Sheathing material | PUR |
| Cable color | Black |
| Number of conductors | 4 -wire |
| Wire cross section | 0.2 mm² |
| Dimension (W x H x L) | 14 mm x 35.5 mm x 25 mm |
| Housing material | Stainless steel |
| Plastic/Stainless Steel housing | |
| Lens cover material | Plastic with scratch-resistant Indium protective coating |
| Housing color | Silver |
| Type of display | LED |
| Ambient temperature, operation | -30 ... 55 °C |
| Ambient temperature, storage | -30 ... 55 °C |
| Degree of protection | IP 67/IP 69K |
Talk to Our Engineer for HRTL 55/66,5000 part no.50115205 at competitive rates. Here are the brief Technical Specifications of HRTL 55/66,5000 are Cubic, Design Diffuse reflection principle with background suppression, 14 mm x 35.5 mm x 25 mm Dimension, Laser, Red Light source, Transistor, Push-pull Switching Outputs 1, Light switching (PNP)/dark switching (NPN) Switching principle, 10 ... 30 V, DC Supply voltage UB, 0.015 ... 0.4 m Sensing Distance, Cable Type of connection, Stainless steel Housing material, IP 67/IP 69K degree of protection. It's Time to get a Quote for your requirement of Leuze 110 g Net weight diffuse sensor. We guarantee unmatched pricing and unparalleled support compared to other Dealers.
