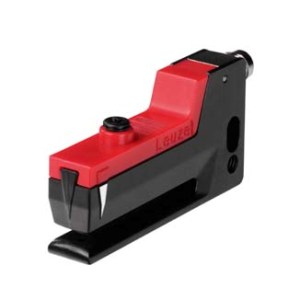

Leuze Fork Photo Sensor
GS 61/6D.2
Brand Leuze Electronics
Model Number GS 61/6D.2
Part Number 50110768
Sensor type Fork Photoelectric Sensor
Leuze Label Sensor GS 61/6D.2 Technical Features:
IndMALL offers Leuze GS 61/6D.2 optical forked sensor with part number 50110768, which belongs to the GS 61 series of fork-type sensors. It is designed to detect non-transparent labels with a label width and gap of 2 mm each. It has 5-wire conductors and comes with a cable length of 2000 mm. The sensor requires a supply voltage ranging from 10 to 30 V DC
Part Number | 50110768 |
Series | 61 |
Principle of Physics | Optical |
Application | Detection of non-transparent labels |
Label width, min. | 2 mm |
Label gap, min. | 2 mm |
Medium | Not transparent |
Light Source | LED, Infrared |
Wavelength | 940 nm |
Supply voltage UB | 10 … 30 V DC |
Open-circuit current | 0 … 30 mA |
Type | Teach input |
Voltage type | DC |
Switching voltage | high: ≥8V low: ≤ 2 V |
Number of digital switching outputs | 1 Piece(s) |
Type | Digital switching output |
Voltage type | DC |
Switching current, max. | 100 mA |
Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
Switching element | Transistor, Push-pull |
Switching principle | Switching signal on label |
Switching frequency | 10,000 Hz |
Response time | 0.05 ms |
Readiness delay | 300 ms |
Max. conveyor speed during teach-in | 20 m/min |
Number of connections | 1 Piece(s) |
Function | Signal OUT Voltage supply |
Type of connection | Cable |
Cable length | 2000 mm |
Number of conductors | 5 -wire |
Design | Fork |
Mouth width | 3 mm |
Mouth depth | 41 mm |
Dimension (W x H x L) | 11 mm x 30 mm x 60 mm |
Housing material | Plastic |
Plastic housing | PC |
Lens cover material | Plastic/PC |
Net weight | 70 g |
Housing color | Black, RAL 9005 Red, RAL 3000 |
Type of fastening | Mounting thread Through-hole mounting Via the optional mounting device |
Type of display | LED |
Number of LEDs | 3 Piece(s) |
Operational controls | Teach button |
Ambient temperature, operation | -20 … 60 °C |
Ambient temperature, storage | -30 … 70 °C |
Degree of protection | IP 65 |
Certifications | c UL US |
Leuze GS 61/6D.2 optical forked sensor with part number 50110768 is designed to detection of non-transparent labels with a minimum label width and gap of 2 mm each. The sensor uses LED infrared light with a wavelength of 940 nm. It requires a supply voltage ranging from 10 to 30 V DC and has an open-circuit current of 0 to 30 mA.
The GS 61/6 sensor has a teach input type and one digital switching output with a maximum switching current of 100 mA. The switching element is a transistor push-pull and the switching principle is a switching signal on the label. The sensor has a response time of 0.05 ms and a readiness delay of 300 ms. During teach-in, the maximum conveyor speed is 20 m/min.
Leuze Label Sensor GS 61/6D.2 has a mouth width of 3 mm, a mouth depth of 41 mm, and dimensions of 11 mm x 30 mm x 60 mm. The housing is made of plastic (PC) and has a lens cover made of plastic/PC. The net weight of the sensor is 70 g, and it comes in two colors: black (RAL 9005) and red (RAL 3000). The sensor can be fastened through a mounting thread, through-hole mounting, or using an optional mounting device.
Leuze GS 61/6D.2 sensor has three LEDs for display and a teach button for operational controls. It can operate in temperatures ranging from -20 to 60 °C and can be stored in temperatures ranging from -30 to 70 °C. It has a degree of protection of IP 65 and is c UL US certified.
