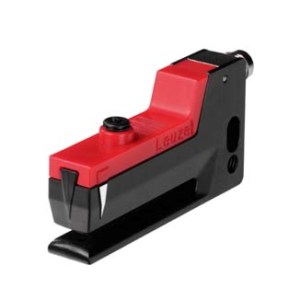

Leuze Fork Sensor
GS 61/6.3
Brand Leuze Electronics
Model Number GS 61/6.3
Part Number 50112425
Sensor type Forked Photoelectric Sensor
Leuze Label Sensor GS 61/6.3 Technical Features:
The Leuze GS 61/6.3 is an optical forked sensor with part number 50112425, belonging to the GS 61 series of fork-type sensors. It is specially designed to detect non-transparent labels with a label width of 2 mm and a label gap of 2 mm. This sensor comes with a cable length of 2000 mm and has 5-wire conductors. To operate, the sensor requires a supply voltage ranging between 10 and 30 V DC.
| Part Number | 50112425 |
| Series | 61 |
| Principle of Physics | Optical |
| Application | Detection of non-transparent labels |
| Label width, min. | 2 mm |
| Label gap, min. | 2 mm |
| Medium | Not transparent |
| Special version | Teach input |
| Light Source | LED, Infrared |
| Wavelength | 940 nm |
| Supply voltage UB | 10 … 30 V DC |
| Open-circuit current | 0 … 30 mA |
| Number of teach inputs | 1 Piece(s |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥8V low: ≤ 2 V |
| Number of digital switching outputs | 1 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Switching element | Transistor, Push-pull |
| Switching principle | Switching signal in label gap |
| Switching frequency | 10,000 Hz |
| Response time | 0.05 ms |
| Readiness delay | 300 ms |
| Max. conveyor speed during teach-in | 20 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Cable |
| Cable length | 2000 mm |
| Number of conductors | 5 -wire |
| Design | Fork |
| Mouth width | 3 mm |
| Mouth depth | 41 mm |
| Dimension (W x H x L) | 11 mm x 30 mm x 60 mm |
| Housing material | Plastic |
| Plastic housing | PC |
| Lens cover material | Plastic/PC |
| Net weight | 70 g |
| Housing color | Black, RAL 9005 Red, RAL 3000 |
| Type of fastening | Mounting thread Through-hole mounting Via the optional mounting device |
| Type of display | LED |
| Number of LEDs | 3 Piece(s) |
| Operational controls | Teach button |
| Ambient temperature, operation | -20 … 60 °C |
| Ambient temperature, storage | -30 … 70 °C |
| Degree of protection | IP 65 |
| Certifications | c UL US |
IndMALL offers Leuze Optical Fork Sensor GS 61/6.3 is an optical sensor that is specifically designed for the detection of non-transparent labels. It belongs to the GS 61 series and has a label identification fork type and has a part number of 50112425. The sensor has a label width of at least 2mm and a label gap of 2mm.
The sensor is equipped with a 2000mm cable that has 5-wire conductors and requires a supply voltage ranging from 10 to 30 V DC. It has a switching element that is a transistor push-pull and a switching principle of switching signal in the label gap.
One of the unique features of this sensor is its teach input function, which allows for the easy adjustment of the sensor to different label sizes and gaps. The maximum conveyor speed during teach-in is 20 m/min, and the sensor has a response time of 0.05 ms and a readiness delay of 300 ms.
The GS 61/6D.2,200-S12 Fork photoelectric sensor has a plastic housing made of PC material with a lens cover material of plastic/PC. It is available in black (RAL 9005) and red (RAL 3000) colors and can be mounted through the mounting thread or through-hole mounting via the optional mounting device. The Leuze GS 61/6.3 sensor has an IP of 65 degree of protection, which means that it is protected from dust and water splashes. The Leuze GS 61/6.3 optical forked sensor is certified with c UL US,
