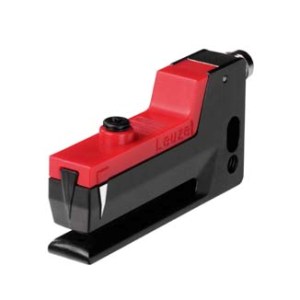

Leuze Optical Fork Sensor
GS 61/6.2,200-S12
Brand Leuze Electronics
Model Number GS 61/6.2,200-S12
Part Number 50112422
Sensor type Forked Photoelectric Sensor
Leuze Fork Sensor GS 61/6.2,200-S12 Technical Features:
IndMALL provides the Leuze GS 61/6.2,200-S12 optical forked sensor, which has part number 50112422 and belongs to the GS 61 series of fork-type sensors. The sensor is specifically designed to detect non-transparent labels with a label width and gap of 2 mm each. It is equipped with a 200 mm cable that has an M12 connector with 5 pins, and it requires a supply voltage ranging from 10 to 30 V DC to operate.
Part Number | 50112422 |
Series | 61 |
Principle of Physics | Optical |
Application | Detection of non-transparent labels |
Label width, min. | 2 mm |
Label gap, min. | 2 mm |
Medium | Not transparent |
Light Source | LED, Infrared |
Wavelength | 940 nm |
Supply voltage UB | 10 … 30 V DC |
Open-circuit current | 0 … 30 mA |
Number of teach inputs | 1 Piece(s |
Type | Teach input |
Voltage type | DC |
Switching voltage | high: ≥8V low: ≤ 2 V |
Number of digital switching outputs | 1 Piece(s) |
Type | Digital switching output |
Voltage type | DC |
Switching current, max. | 100 mA |
Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
Switching element | Transistor, Push-pull |
Switching principle | Switching signal in label gap |
Switching frequency | 10,000 Hz |
Response time | 0.05 ms |
Readiness delay | 300 ms |
Max. conveyor speed during teach-in | 20 m/min |
Number of connections | 1 Piece(s) |
Function | Signal OUT Voltage supply |
Type of connection | Cable with connector |
Cable length | 200 mm |
Thread size | M12 |
Type | Male |
Material | Metal |
No. of pins | 5 -pin |
Encoding | A-coded |
Design | Fork |
Mouth width | 3 mm |
Mouth depth | 41 mm |
Dimension (W x H x L) | 11 mm x 30 mm x 60 mm |
Housing material | Plastic |
Plastic housing | PC |
Lens cover material | Plastic/PC |
Net weight | 70 g |
Housing color | Black, RAL 9005 Red, RAL 3000 |
Type of fastening | Mounting thread Through-hole mounting Via the optional mounting device |
Type of display | LED |
Number of LEDs | 3 Piece(s) |
Operational controls | Teach button |
Ambient temperature, operation | -20 … 60 °C |
Ambient temperature, storage | -30 … 70 °C |
Degree of protection | IP 65 |
Certifications | c UL US |
The Leuze GS 61/6.2,200-S12 optical forked sensor with part number 50112422 is part of the GS 61 series of fork-type sensors available at IndMALL. This sensor is designed to detect non-transparent labels with a label width and gap of 2 mm each. It has a 200 mm cable with an M12 connector that has 5 pins and requires a supply voltage ranging from 10 to 30 V DC to operate.
Leuze fork sensor GS 61/6,200-S12 sensor features a teach input, a switching element that is a transistor push-pull, and a switching principle of switching signal in the label gap. It has a response time of 0.05 ms and a readiness delay of 300 ms and can detect up to 10,000 Hz switching frequency. The sensor has one piece of connection for signal OUT and voltage supply and has a plastic housing made of PC material with a lens cover material of plastic/PC. It comes in black (RAL 9005) and red (RAL 3000) housing colors and can be mounted through the mounting thread, through-hole mounting, or via the optional mounting device.
Leuze GS 61/6.2,200-S12 optical forked sensor has an IP 65 degree of protection and is certified with c UL US. It also features 3 LED display lights and a teach button as operational controls and has an operational temperature range of -20 to 60°C and a storage temperature range of -30 to 70°C.
