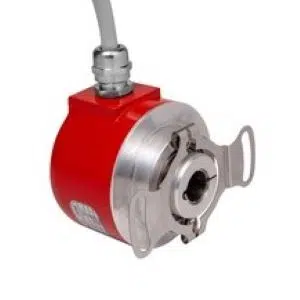

Leuze EI 1058-T10S-1024T-020R Rotary Encoder
The Leuze EI 1058-T10S-1024T-020R Rotary Encoder offers a Hollow shaft design, 1024 p/r resolution, PVC, 2,000 mm Cable Length connection. Manufactured by Leuze under the Leuze Rotary Encoder category, this model belongs to the EI 1058 Series.
| Brand | Leuze |
| Product Type | Rotary Encoder |
| Product | EI 1058-T10S-1024T-020R |
Leuze EI 1058-T10S-1024T-020R Rotary Encoder โ Technical Specifications
| Specification | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max. operating speed | 6,000 r/min |
| Resolution | 1024 p/r |
| Supply Voltage UB | 5 ... 28 V, DC |
| Open-circuit current | 0 ... 150 mA |
| Switching frequency | 300,000 Hz |
| Interface type | TTL |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC, 2,000 mm Cable Length |
| Connector | Radial |
| Number of conductors or pins | 8 -wire |
| Housing material | Metal; Aluminum |
| Flange type | Stator coupling |
| Design | Hollow shaft |
| Dimension (ร x L) | 10 mm |
| Dimension (ร x L) | - |
| Start-up torque | 0.5 Nยทm |
| Shaft load - axial | 60 N |
| Shaft load - radial | 120 N |
| Ambient temperature | -40 ... 70 ยฐC |
| Degree of protection | IP 65 |
Get A Quote for Leuze 300,000 Hz Switching Frequency EI 1058-T10S-1024T-020R part no: 50144852 at the best price. Here are the brief Technical Specifications of EI 1058-T10S-1024T-020R, 50144852 feature Incremental rotary encoder, 6,000 r/min operating speed, 1024 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, TTL Interface type, Signal OUT Voltage supply , PVC, 2,000 mm Cable Length, Radial connector, 8 -wire, Stator coupling flange type, Hollow shaft design, 10 mm dimension, 60 N shaft load axial, 120 N shaft load radial, IP 65 degree of protection. It's Time to get a Quote for your requirement of Leuze 300,000 Hz Switching Frequency. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
