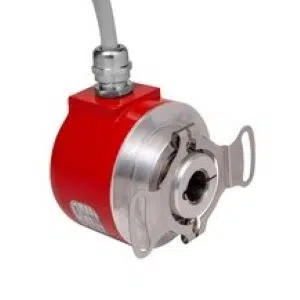

Leuze EI 1058-T10S-0360H-050R Rotary Encoder
The Leuze EI 1058-T10S-0360H-050R Rotary Encoder offers a Solid shaft with flattening design, 360 p/r resolution, PVC, 5,000 mm Cable Length connection. Manufactured by Leuze under the Leuze Rotary Encoder category, this model belongs to the EI 1058 Series.
| Brand | Leuze |
| Product Type | Rotary Encoder |
| Product | EI 1058-T10S-0360H-050R |
Leuze EI 1058-T10S-0360H-050R Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max. operating speed | 6,000 r/min |
| Resolution | 360 p/r |
| Supply Voltage UB | 5 ... 28 V, DC |
| Open-circuit current | 0 ... 150 mA |
| Switching frequency | 300,000 Hz |
| Interface type | HTL |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | PVC, 5,000 mm Cable Length |
| Connector | Radial |
| Number of conductors or pins | 8 -wire |
| Housing material | Metal; Aluminum |
| Flange type | Stator coupling |
| Design | Solid shaft with flattening |
| Dimension (Ø x L) | 10 mm |
| Dimension (Ø x L) | 20 mm |
| Start-up torque | 1 N·m |
| Shaft load - axial | 120 N |
| Shaft load - radial | 220 N |
| Ambient temperature | -10 ... 50 °C |
| Degree of protection | IP 65 |
Mail us for Leuze Solid Shaft Incremental Sensor EI 1058-T10S-0360H-050R part no: 50144350 with budget-friendly prices. Technical Details of EI 1058-T10S-0360H-050R, 50144350 are Incremental rotary encoder, 6,000 r/min operating speed, 360 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, HTL Interface type, Signal OUT Voltage supply, PVC, 5,000 mm Cable Length, Radial connector, 8 -wire, Stator coupling flange type, Solid shaft with flattening design, 10 mm dimension, 20 mm dimension, 120 N shaft load axial, 220 N shaft load radial, IP 65 degree of protection. Elevate Your Project with a Quote for your requirement of Leuze Solid Shaft Incremental Sensor. Rest assured, our pricing and support outshine other Suppliers.
