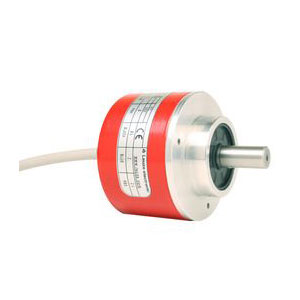

Leuze EI 1058-S10x20C-2048H-M23A Rotary Encoder
The Leuze EI 1058-S10x20C-2048H-M23A Rotary Encoder offers a Shaft design, 2,048 p/r resolution, M23 Connector connection. Manufactured by Leuze under the Leuze Rotary Encoder category, this model belongs to the EI 1058 Series.
| Brand | Leuze |
| Product Type | Rotary Encoder |
| Product | EI 1058-S10x20C-2048H-M23A |
Leuze EI 1058-S10x20C-2048H-M23A Rotary Encoder – Technical Specifications
| Specification | Value |
|---|---|
| Type | Incremental rotary encoder |
| Max. operating speed | 6,000 r/min |
| Resolution | 2,048 p/r |
| Supply Voltage UB | 5 ... 28 V, DC |
| Open-circuit current | 0 ... 150 mA |
| Switching frequency | 300,000 Hz |
| Interface type | HTL |
| Connection Function | Signal OUT Voltage supply |
| Type of Connection | M23 Connector |
| Connector | Axial |
| Number of conductors or pins | 12 -pin |
| Housing material | Metal; Aluminum |
| Flange type | Clamping flange |
| Design | Shaft |
| Dimension (Ø x L) | 10 mm |
| Dimension (Ø x L) | 20 mm |
| Start-up torque | 0.5 N·m |
| Shaft load - axial | 60 N |
| Shaft load - radial | 120 N |
| Ambient temperature | -40 ... 70 °C |
| Degree of protection | IP 65 |
IndMALL Dealing Leuze M23 Incremental Rotary Encoder EI 1058-S10x20C-2048H-M23A part no: 50139591 with the special pricing. Technical Specs Summary of EI 1058-S10x20C-2048H-M23A, 50139591 feature Incremental rotary encoder, 6,000 r/min operating speed, 2,048 p/r, 5 ... 28 V, DC power supply, 0 ... 150 mA current, 300,000 Hz frequency, HTL Interface type, Signal OUT Voltage supply, M23 Connector, Axial connector, 12 -pin, Clamping flange type, Shaft design, 10 mm dimension, 20 mm dimension, 60 N shaft load axial, 120 N shaft load radial, IP 65 degree of protection. Match Your Needs with a Quote for your requirement of Leuze M23 Incremental Rotary Encoder. Our pricing and support are unrivaled, especially when compared to other Distributors.
