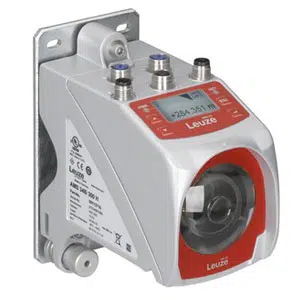

Leuze AMS 384i 300 | 50113736
Technical Specifications of Leuze AMS 384i 300 50113736
| Spec | Value |
|---|---|
| Dimension (W x H x L) | 84 mm x 166.5 mm x 159 mm |
| Measurement range | 200 ... 300,000 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Thread Size | M12 |
Leuze 300M Sensing Optical Distance Sensor AMS 384i 300, 50113736 Technical Specifications:
| Specification | Value |
|---|---|
| Dimension (W x H x L) | 84 mm x 166.5 mm x 159 mm |
| Measurement range | 200 ... 300,000 mm |
| Supply voltage UB | 18 ... 30 V, DC |
| Con 1: Type of Connection | Connector |
| Con 1: Designation on device | BUS IN |
| Con 1: Thread size | M12 |
| Con 1: Material | Metal |
| Con 1: No. of pins | 5 -pin |
| Con 2: Function | BUS OUT Data interface |
| Con 2: Type of connection | Connector |
| Con 2: Designation on device | BUS OUT |
| Con 2: Thread size | M12 |
| Con 2: Type | Female |
| Con 2: No. of pins | 5 -pin |
| Con2: Encoding | B-coded |
| Con 3: Function | PWR / SW IN / OUT Voltage supply |
| Con 3: Type of connection | Connector |
| Con 3: Designation on device | PWR |
| Con 3: Thread size | M12 |
| Con 3: Type | Male |
| Con 3: No. of pins | 5 -pin |
| Con3: Encoding | A-coded |
| Con 4: Type of connection | Connector |
| Con 4: Designation on device | SERVICE |
| Con 4: Thread size | M12 |
| Con 4: Type | Female |
| Con 4: No. of pins | 5 -pin |
| Con 4: Encoding | A-coded |
| Housing material | Metal |
| Degree of protection | IP 65 |
IndMALL Offers AMS 384i 300 50113736 at economical Choices. Product Tech Specs of AMS 384i 300 are 18 ... 30 V, DC, 84 mm x 166.5 mm x 159 mm Dimension, A-coded, Connector, SERVICE, 200 ... 300,000 mm Measurement range, Service interface, Con 4: Function, Metal Housing material, IP 65 degree of protection. Now's the Time to Secure a Quote for your requirement of Leuze 300M Sensing Optical Distance Sensor. Trust in our superior pricing and more dedicated support over other Distributors.
