Honeywell Pressure Sensors: Pressure Transmitter & Transducer

IndMALL Automation offers a diverse range of Honeywell Pressure Sensors, catering to various industrial needs. The PX2 Series, with stainless steel construction, is ideal for various media, covering a pressure range of 1 to 70 bar. The MLH Series offers high precision in ranges up to 550 bar.

The ABP Series is perfect for board mounting applications, while the PX3 Series excels in refrigerant and oil applications. The MIP Series, designed for harsh environments, and the SPT Series, suitable for hostile media, ensure durability and accuracy. The ST700 series, including the STA700 and STD700, offers specialized solutions for vacuum and differential pressure applications.

Honeywell Pressure Sensors: PX2 Series

Type: Amplified pressure transducers.
Accuracy: ±2 %FSS TEB; Material: 304 Stainless Steel.
Pressure Types: Absolute, sealed gage, vented gage.
Pressure Range: 1 bar to 70 bar, 100 kPa to 7 MPa, 15 psi to 1000 psi.
Media Compatibility: Suitable for various refrigerants, engine oil, hydraulic fluids, brake fluid, and dry air.
Durability: Designed to withstand rigorous environments, capable of surviving at least 10 million pressure cycles.
Ingress Protection: Rated up to IP69K.

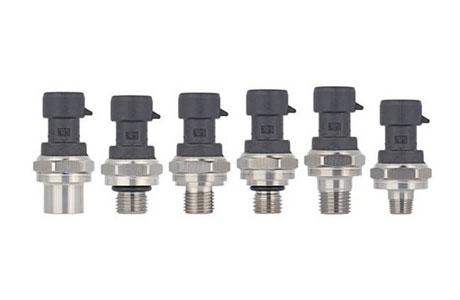

Honeywell Pressure Transducer: MLH Series

Type: Amplified pressure transducers.
Total Error Band (TEB): As low as ±2 %FSS TEB.
Pressure Types: Gage and sealed gage; Pressure Range: 6 bar to 550 bar (0 psi to 8000 psi).
Materials: 304L Stainless Steel port, Haynes 214 alloy diaphragm, plastic body.
Output Options: Six standard outputs including Ratiometric (0.5 Vdc to 4.5 Vdc from 5 Vdc excitation), Current (4 mA to 20 mA), and various Regulated outputs (1 Vdc to 6 Vdc, 0.25 Vdc to 10.25 Vdc, 0.5 Vdc to 4.5 Vdc, 1 Vdc to 5 Vdc).
Features: Metal wetted parts, no internal seals, fast response time (<2 ms), reverse voltage protection.

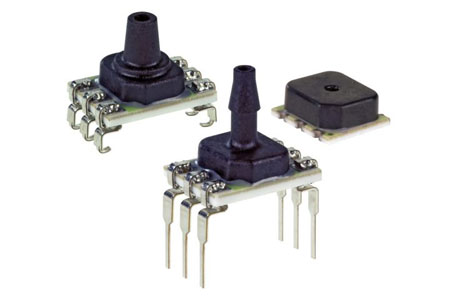

Honeywell Board Mount Pressure Sensors: ABP Series

Accuracy: ±1.5 %FSS TEB.
Pressure Types: Differential or gage.
Output: Digital or analog; Mounting: DIP, leadless SMT, SMT.
Pressure Range: ±60 mbar to ±10 bar, ±6 kPa to ±1 MPa, ±1 psi to ±150 psi.
Media Compatibility: Options for dry gases only and liquid media.
Key Features: Compensated/amplified, cost-effective, suitable for a wide range of applications.

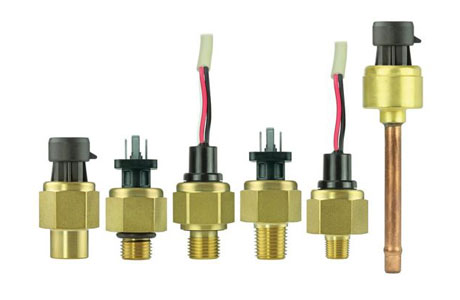

Honeywell Pressure Sensor: PX3 Series

Accuracy: ±1 %FSS typical TEB.
Pressure Types: Absolute, sealed gauge.
Material: Brass C36000.
Pressure Range: 1 bar to 50 bar, 15 psi to 700 psi.
Temperature Compensation: From -40°C to 125°C [-40°F to 257°F].
Media Compatibility: Suitable for various refrigerants, engine oil, hydraulic fluids, brake fluids, and dry air.

Honeywell Transducers: MIP Series

Type: Configurable, media-isolated pressure sensor.
Accuracy: ±0.75 %FSS TEB.
Pressure Types: Absolute, sealed gauge.
Material: Stainless steel.
Pressure Range: 1 bar to 70 bar, 15 psi to 1000 psi.
Outputs: Amplified Analog (Voltage ratiometric, voltage regulated, and Current) and Digital.
Key Features: Media-isolated, suitable for harsh environments, wide temperature range.

Honeywell Differential Pressure Sensors: SPT Series

Type: Amplified and unamplified.
Pressure Types: Absolute, gage, sealed gage, vacuum gage.
Material: Wetted parts made of 316L Stainless Steel.
Pressure Range: 0 psi to 3 psi through 0 psi to 5000 psi.
Output: Various options including 4.0 mA to 20.0 mA, 1.0 Vdc to 5.0 Vdc, and 0 mV to 100 mV.
Applications: Suitable for harsh environments and hostile media.

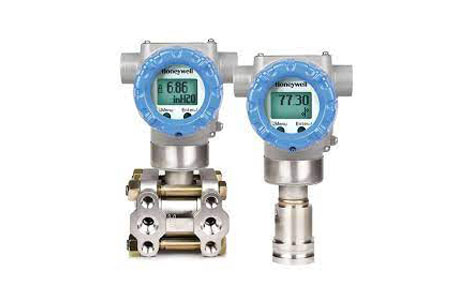

Honeywell Pressure Transmitters: ST700 series

STA700: Absolute Pressure Transmitters for vacuum applications.
STD700: Differential Pressure Transmitters for various applications.
STF700: Flange Mount Pressure Transmitters for tank connections.
Flush Mount: Pressure Transmitters for process insertion.
STG700: Gauge Pressure Transmitters for high-pressure measurements.
STR700: Remote Diaphragm Seal Transmitters for corrosive or high-temperature fluids.

Frequently Asked Questions

How does a Honeywell Pressure Sensor Work?

A Honeywell pressure sensor operates by converting pressure into an electrical signal. When pressure is applied, it deforms a diaphragm within the sensor. This deformation changes the electrical resistance in a circuit.

The sensor then translates these resistance changes into voltage variations, accurately reflecting the pressure applied, which can be measured and displayed.

What is a Honeywell Pressure Switch?

A Honeywell pressure switch is a device that monitors pressure levels and activates a response when a specified pressure threshold is reached. It’s commonly used in industrial and HVAC systems. The switch operates by opening or closing an electrical circuit based on the pressure it detects, ensuring systems operate within safe and efficient pressure ranges.

What is the range of Honeywell Pressure Transmitter?

Honeywell pressure transmitters offer a wide range of measurement capabilities, typically ranging from very low pressures (a few inches of water column) to high pressures (up to 10,000 psi or more). They are designed to accurately measure and transmit pressure data in various industrial and commercial applications.

How Accurate is the Honeywell Transmitter?

Honeywell pressure transmitters are known for their high accuracy, with many models offering precision within ±0.1% to ±0.25% of the full-scale range. This level of accuracy ensures reliable and consistent pressure measurements, crucial for maintaining optimal performance in various industrial and commercial processes.
