Four Channel Relay Module - AE-04-005D-2-B-C (G2R)

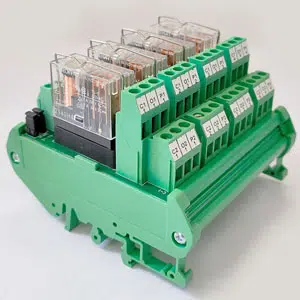

Four Channel Relay Module AE-04-005D-2-B-C (G2R) is a compact and reliable relay interface designed for industrial control and switching applications. Built to handle multiple output signals efficiently, this module supports automation systems that require stable relay-based control for machines, panels, and electrical circuits. It is widely used in applications where consistent switching performance and easy integration are important. Designed for structured wiring and panel mounting, the module ensures safe operation and dependable output control. The AE-04-005D-2-B-C (G2R) configuration is suitable for automation setups that demand precise relay switching with long-term reliability.
| Brand | Agility |
| Product Type | Relay Board |
| Product | AE-04-005D-2-B-C (G2R) |
Agility AE-04-005D-2-B-C (G2R) Four Channel Relay Module Technical Specifications:
| Specification | Value |
|---|---|
| Board Manufactures | Agility |
| Channels | 4 |
| Coil Voltage | 5VDC |
| Switching Current | 5A at 30VDC/250VAC |
| Contact Type 1C/O SPDT | 2C/O DPDT |
| Relay Make | OMRON G2R Series |
| Relay Actuation | LED Indication |
| Relay Coil Protection | Freewheeling Diode |
| Mounting | Universal DIN Rail |
| Input indication | 3 mm green LED for input status |
| Power consumption | Approx. 530mW |
| Must operate voltage | 80% max. of rated voltage |
| Must release voltage | 30% max. of rated voltage |
| Contact material | Ag-alloy (Cd free) |
| Maximum switching voltage | 380V AC, 125V DC |
| Contact resistance | 50mOhm max |
| Operate time | 15 ms max. |
| Release time | DC: 5 ms max. & AC: 10 ms max. |
| Insulation resistance | 1000 M Ohm min |
| Maximum mechanical operating frequency | 18000 operation/hour |
| Maximum electrical operating frequency | 1800 operation/hour (under rated load) |
| Maximum voltage | 140% at 23Β°C |
| Ambient operating temperature | 0Β°C to 50Β°C |
| Housing material | PVC/V0 Grade, Phoenix Contact or equivalent |
| Housing color | Green |
| Conformal coating | Insulate, protect, and seal electronic parts, available on request |
| Terminals | PCB Terminals Screw |
| RoHS compliant | All the components used including PCBs are RoHS approved |
The Four Channel Relay Module AE-04-005D-2-B-C (G2R) is designed to manage multiple relay outputs within compact automation systems. It is commonly used to control electrical loads, interface PLC outputs, and manage signal switching in industrial panels. Engineers selecting a relay module for multi-channel control typically consider this model for its structured design and stable switching behavior.
In practical applications, this module supports consistent relay operation across different load conditions, ensuring reliable signal transfer between control systems and field devices. Its four-channel configuration allows efficient handling of multiple outputs within a single unit, making it suitable for automation environments that require organized control architecture and simplified wiring.
From a system perspective, the AE-04-005D-2-B-C (G2R) relay module fits seamlessly into control panels and automation setups. Buyers evaluating relay interface modules often choose this model for its durability, ease of installation, and dependable performance. This clear alignment between module design, switching function, and application makes it a practical choice for industrial control systems.
