Finder Relay: General Purpose & Power Relays

IndMALL Automation proudly offers a comprehensive range of Finder Relay, known for their reliability and versatility. Our selection includes Finder Miniature Relays, perfect for compact spaces, and Finder General Purpose Relays, suitable for a variety of applications. We provide Finder Power Relays, ideal for handling higher currents, and Finder Slim Relays, which offer space-saving solutions. Our Finder 24 VDC Relays are designed for optimal performance in DC circuits.

We offer Finder DIN Rail Relays, which are easy to install and ideal for industrial control panels. Whether you need a relay for a specific function or a general-purpose solution. Our Finder Relay range caters to all your needs, available at competitive prices in Bangalore, Pondicherry, Coimbatore, Chennai, Hyderabad, and PAN India.

Finder Relay: 46 Series

Coils: DC coils at 500 mW or AC coils at 1.2 VA.
Mounting: Options for socket mount or direct connection via Faston connectors.
Additional Features: Available with a lockable test button, mechanical flag, and LED indicator.
Isolation: 8 mm, 6 kV (1.2/50 μs) isolation between coil and contacts.

Finder Relays: 55 Series

Coils: Available in both AC and DC types.
Mounting: Options for PCB or plug-in mounting.
Additional Features: Can include a lockable test button, mechanical flag, and LED indicator.

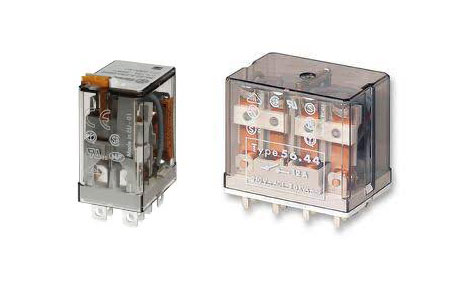

Finder Relay 24 VDC: 56 Series

Coils: Available in both AC and DC types.
Mounting: Options for PCB or plug-in mounting, with a flange mount option (187 Faston termination).
Additional Features: Can include a lockable test button, mechanical flag, and LED indicator.

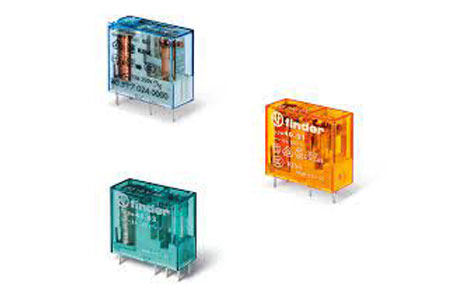

Finder Miniature Relay: 40 Series

Coil Types: DC coils available in standard or sensitive types, with 500 or 650 mW power.
Pin Length: Options of 3.5 mm or 5.3 mm.
Isolation: 8 mm, 6 kV (1.2/50 μs) isolation between coil and contacts.
Versions: PCB and plug-in versions.

Finder General Purpose Relay: 60 Series

Coils: AC & DC options, including current sensing versions.
Mounting: 8 & 11 pin plug-in, flange mount.
Additional Features: Available with lockable test button, mechanical flag, and LED indicator.
Contact Options: Version with bifurcated contacts for low-level switching.

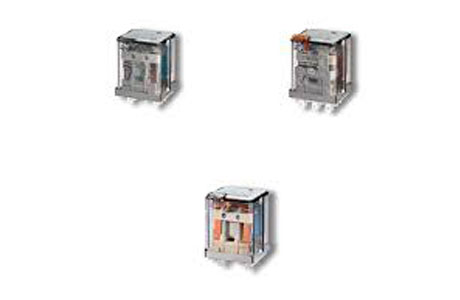

Finder Power Relay: 62 Series

Coils: Available in both AC and DC types.
Magnetic Blow-Out Version: Enhances switching capabilities.
Mounting Options: PCB mount, Plug-in mount (187 Faston), or Flange mount (250 Faston).
Contact Options: NO contacts with >3mm contact gap.
Additional Features: Options for LED, mechanical indicator, and test button.

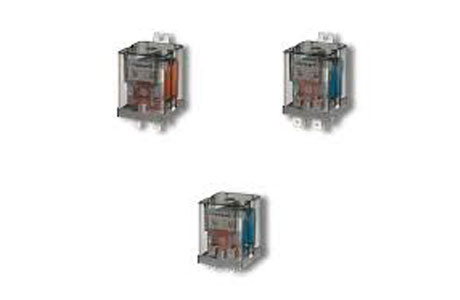

Finder Power Relays: 65 Series

Coils: Available in both AC and DC types.
Mounting Options: PCB mount or Flange mount (250 Faston).
Contact Gap: NO version with > 3 mm contact gap.

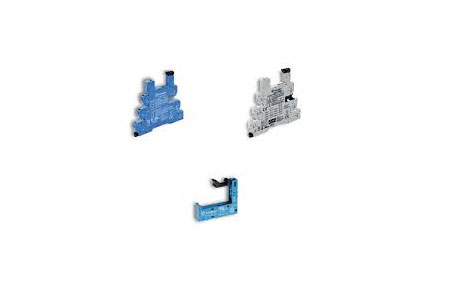

Finder DIN Rail Relay: 93 Series

Mounting Options: Available for 35 mm rail (EN 60715) and PCB mounting.
Connection Types: Include screw terminal, push-in, and PCB connections.
Accessories: Include end plates and partition plates for visual separation and protective separation of different voltages in neighboring PLC interfaces.

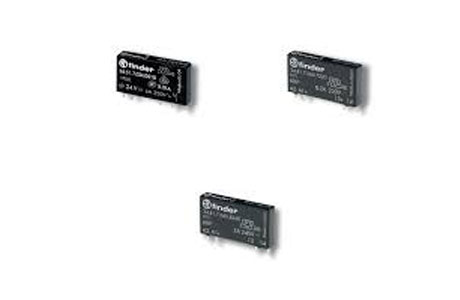

Finder Slim Relay: 34 Series

EMR Version:

Sensitive DC coil: 170 mW.
5 mm width with 6kV (1.2/50 μs) isolation between coil and contacts.

SSR Version:

Sensitive DC input circuits.
5 mm wide.
Silent, high-speed switching with long electrical life.

Frequently Asked Questions

What is a Finder Relay Used for?

A Finder relay is used for switching electrical circuits on and off. It operates as an electromechanical device, controlling large currents with smaller ones.

Finder relays are widely used in automation, industrial processes, and electrical applications, offering reliable performance for controlling power and signals in various systems.

What is the Structure of a Relay?

A relay consists of a coil, an armature, a spring, and sets of contacts. When electricity flows through the coil, it creates a magnetic field, pulling the armature to close or open the contacts.

This action switches circuits on or off. The spring returns the armature to its original position when the current stops.

What are the Three Basic Functions of a Relay?

Relays primarily perform three basic functions: switching, amplifying, and isolation. They switch circuits on or off by mechanically closing or opening contacts. Relays amplify a small electrical input to control a larger electrical load. They also provide electrical isolation between control and load circuits, enhancing safety and circuit protection.

What is the Function of Plug in Relay?

Plug-in relays serve to control electrical circuits by opening and closing contacts in another circuit. Easily inserted into socket bases, they facilitate quick installation and replacement.

These relays are widely used for switching multiple circuits, both in industrial and automotive applications, offering versatility and ease of maintenance.

If you required Finder Relay, Get a Quote Now, at +91 79955 44066
