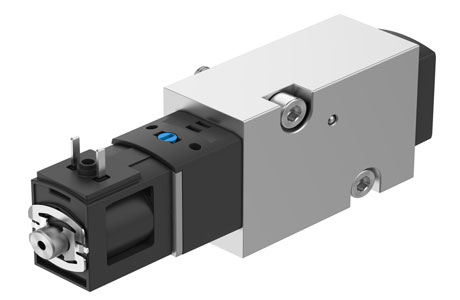

Festo VSNC-FK-M52-RD-G18-1C1-S Pneumatic Valve
The Festo VSNC-FK-M52-RD-G18-1C1-S Solenoid Valve offers Electric actuation, NAMUR port pattern working port, andPiston slide with sealing ring design. Manufactured by Festo under the Festo Solenoid Valve category, this model belongs to the VSCS Series.
| Brand | Festo |
| Product Type | Solenoid Valve |
| Product | VSNC-FK-M52-RD-G18-1C1-S |
Festo VSNC-FK-M52-RD-G18-1C1-S Pneumatic Valve – Technical Specifications
| Specification | Value |
|---|---|
| Valve function | 5/2-way, monostable |
| Type of actuation | Electric |
| Construction width | 25.5 |
| Standard nominal flow rate (standardised to DIN 1343) | 400 |
| pneumatic working port | NAMUR port pattern |
| Operating pressure | 2.5; 8 |
| Design | Piston slide with sealing ring |
| Type of reset | Mechanical spring; Pneumatic spring |
| Degree of protection | IP65 |
| Sealing principle | With flow control option |
| Mounting position | Soft |
| Conforms to standard | optional |
| Manual override | VDI/VDE 3845 (NAMUR) |
| Type of piloting | Detenting |
| Flow direction | Pilot actuated |
| Switching time off | 50 |
| Switching time on | 50 |
| Duty cycle | 100% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Media temperature | -20; 50 |
| Ambient temperature | -20; 50 |
| Type of mounting | With through-hole |
| Material seals | NBR |
| Operating voltage | 24V DC |
| Characteristic coil data | 24 V DC: 2.4 W |
| Electrical connection | Type C |
