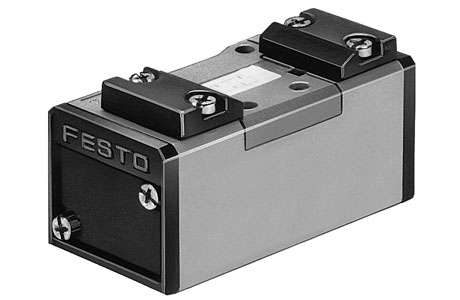

Festo VL-5/3E-D-3-C Pneumatic Valve
| Brand | Festo |
| Product Type | Pneumatic Valve |
| Product | VL-5/3E-D-3-C |
Festo VL-5/3E-D-3-C Pneumatic Valve โ Technical Specifications
| Specification | Value |
|---|
| Valve function | 5/3 exhausted |
| Type of actuation | Pneumatic |
| Construction width | 65 |
| Standard nominal flow rate (standardised to DIN 1343) | 4600 |
| pneumatic working port | Sub-base size 3 to ISO 5599-1; G1/2 |
| Operating pressure | -0.9; 16 |
| Design | Piston gate valve |
| Nominal size | 14.5 |
| Grid dimension | 71 |
| Exhaust-air function | With flow control option |
| Sealing principle | Soft |
| Mounting position | optional |
| Conforms to standard | ISO 5599-1 |
| Manual override | None |
| ISO code | 308 |
| Type of piloting | Direct |
| Flow direction | Reversible |
| Symbol | 991021 |
| lap | Overlap |
| Pilot pressure | 3; 16 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Vibration resistance | Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10; 60 |
| Sound pressure level | 85 |
| Pilot medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Ambient temperature | -10; 60 |
| Product weight | 910 |
| Type of mounting | On sub-base; Via through-hole and screw |
| Material seals | HNBR; NBR |
| Material housing | Die-cast aluminium |
| Type of reset | Mechanical spring |
| Switching time off | 63 |
| Switching time on | 18 |
