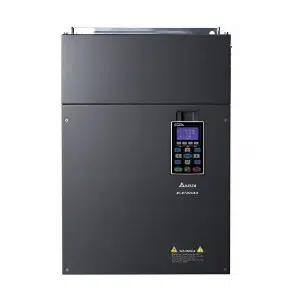

Delta VFD750CP23A-00 Variable Frequency Drive
Delta VFD750CP23A-00 Variable Frequency Drive is designed for industrial automation systems requiring high-capacity motor control with dependable space-efficient installation capability. This Delta 75kW Compact Drive supports 100 HP motor applications using a three-phase 200–240 VAC input supply and delivers 276 A rated output current for controlled machine performance. The drive uses fan cooling with an IP00 enclosure suitable for cabinet-integrated industrial installations requiring internal protection arrangements. Manufactured by Delta, this model belongs to the industrial drive systems category and is part of the CP2000 Series used across industrial motor automation applications.
| Brand | Delta |
| Product | VFD |
| Model Number | VFD750CP23A-00 |
Delta VFD750CP23A-00 Variable Frequency Drive - Technical Specifications
| Specification | Value |
|---|---|
| Input Voltage / Frequency | 230V, Three-Phase AC 200V~240V(-15%-+10%), 50/60Hz |
| Output Capacity (kVA) Normal Duty | 110 kVA |
| Output Current (A) Normal Duty | 276 A |
| Applicable Motor Output (kW) Normal Duty | 75 kW |
| Applicable Motor Output (HP) Normal Duty | 100 HP |
| Cooling Method | Fan Cooling |
| Efficiency (%) | 97 |
| IP Level | IP00 |
| NEMA Protection Level | UL Open Type |
| Storage/Transportation Temperature | -25ºC ~ +70ºC |
| Braking Chopper | Optional Braking Chopper |
| Control Method | Pulse Width Modulation (PWM) |
| Installation Type | Wall-Mounting |
| V/F Curve | 4 point adjustable V / F curve and square curve |
| Input Frequency Tolerance | 47~63Hz |
| Voltage Tolerance | 170~265Vac |
The DELTA VFD750CP23A-00 Variable Frequency Drive is commonly used in automation equipment where compact high-capacity motor regulation improves operational efficiency and production reliability. Applications involving conveyors, pumps, compressors, ventilation systems, and heavy-duty process machinery benefit from smooth acceleration and dependable motor control during continuous industrial operation. Its compact drive structure supports industrial systems requiring organized installation with stable high-load performance.
Automation panels integrating the VFD750CP23A-00 can improve motor performance while reducing electrical stress caused by direct startup conditions. The drive supports balanced machine operation across repeated production cycles and helps maintain stable automation performance under changing production demands. Its fan cooling structure and cabinet-integrated design are suitable for industrial environments requiring dependable thermal management and organized drive installation.
For automation engineers selecting a Delta 75kW Compact Drive, the VFD750CP23A-00 provides a practical combination of installation flexibility, dependable motor control, and industrial reliability. The model supports both new automation projects and replacement requirements involving large industrial motor systems. Within the Delta drive category, it remains a suitable solution for applications requiring controlled variable frequency operation in industrial automation environments.
