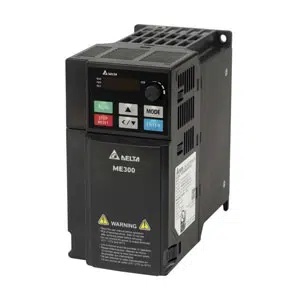

Delta VFD5A5ME43ANNAA : VFD Drive for 3HP Motor
The Technical Specifications of Delta VFD5A5ME43ANNAA VFD Drive for 3HP Motor are:
- Series: ME300
- Input Voltage: 460V Three-phase
- Motor Output (kW): 2.2 kW
- Motor Output (HP): 3 HP
- Cooling Method: Fan cooling
- Braking Chopper: Built-in
Delta VFD5A5ME43ANNAA VFD Drive for 3HP Motor Technical Specifications:
| Series Name | ME300 |
| Input Voltage / Frequency | Three-phase AC, 380V~480V (-15% ~ + 10%), 50 / 60Hz |
| Applicable Motor Output ( kW) | 2.2 kW |
| Applicable Motor Output (HP) | 3 HP |
| Heavy Duty Rated Output Current | 5.5 A |
| Normal Duty Rated Output Current | 6.5 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| EMC Filter | None |
| Safe Torque Off (STO) | None |
| Model Type | Standard model |
| Braking Chopper | Built-in |
| Output Frequency | 0 to 599.00 Hz |
| MODBUS COM | Built-in |
| Control Methods | V/F, SVC |
| Size: W × H (mm) | 87 × 157 mm |
| Size: D (mm) | 163 mm |
| Net Weight | 1 kg |
IndMALL Offers Delta VFD5A5ME43ANNAA, a high-performance VFD Drive for 3HP Motor, featuring the ME300 Series with 460V Three-phase input voltage, a 2.2 kW (3 HP) motor output, fan cooling, and a built-in braking chopper.
