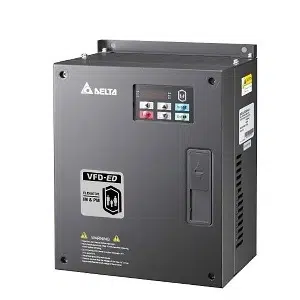

VFD220ED23S: Delta 22kW 230V Variable Speed VFD
Technical Specifications of Delta 22kW 230V Variable Speed VFD VFD220ED23S:
| Spec | Value |
|---|---|
| Input Rated Voltage (V) | Three-phase 200 ~ 240 |
| Applicable Motor Output ( kW) | 22 kW |
| Applicable Motor Output (HP | 30 HP |
| Output Current (A) | 87 A |
Delta 22kW 230V Variable Speed VFD VFD220ED23S Technical Specifications
| Specification | Value |
|---|---|
| Input Rated Voltage (V) | Three-phase 200 ~ 240 |
| Applicable Motor Output ( kW) | 22 kW |
| Applicable Motor Output (HP) | 30 HP |
| Output Capacity (kVA) | 34 kVA |
| Output Current (A) | 87 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| Control Method | V / F, VF+PG, SVC, FOC+PG, FOC+PM |
| Storage/Transportation Temperature | -20 ºC ~ 60 ºC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattem | Adjustable V / F curve using 4 independent points |
| Version Type | S |
| Input Frequency Tolerance | ±5% (47 ~ 63) |
| Voltage Tolerance | ±10% (180 ~ 264) |
| Net Weight (kg) | 13 Kg |
IndMALL Automation Offers Delta 22kW 230V Variable Speed VFD, VFD220ED23S with exclusive offers. Component Specifications of VFD220ED23S features Adjustable V / F curve using 4 independent points, Below 90% RH (non-condensing), IP20 & Fan cooling. It rounds off its features with 22 kW, 30 HP, 34 kVA. Don't Miss Out on a Quote for your requirement of Delta 22kW 230V Variable Speed VFD. Our competitive edge: better pricing and support than other Suppliers.
