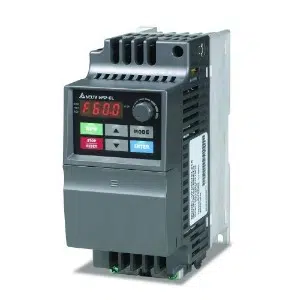

VFD185E43C: Delta 25HP 460V 3-Phase CANopen
Technical Specifications of Delta 25HP 460V 3-Phase CANopen VFD185E43C:
| Spec | Value |
|---|---|
| Input Voltage / Frequency | 460V Three-phase, 380-480V, 50/60Hz |
| Applicable Motor Output ( kW) | 18.5 kW |
| Applicable Motor Output (HP) | 25 HP |
| Output Capacity (kVA) | 29 kVA |
Delta 25HP 460V 3-Phase CANopen VFD185E43C Technical Specifications:
| Specification | Value |
|---|---|
| Series Name | E |
| Input Voltage / Frequency | 460V Three-phase, 380-480V, 50/60Hz |
| Applicable Motor Output ( kW) | 18.5 kW |
| Applicable Motor Output (HP) | 25 HP |
| Output Capacity (kVA) | 29 kVA |
| Output Current (A) | 38 A |
| Cooling Method | Fan cooling |
| IP Level | IP20 |
| Pollution Degree | 2 |
| Storage/Transportation Temperature | -20ºC to 60ºC |
| Ambient Humidity | Below 90% RH (non-condensing) |
| V/F Pattern | Adjustable V/F pattern |
| Version Type | C: CANopen |
| Input Frequency Tolerance | ±5% (47-63Hz) |
| Voltage Tolerance | ±10% (342-528V) |
| Net Weight (kg) | 7.47 kg |
Give Us a Call for Delta 25HP 460V 3-Phase CANopen, VFD185E43C at the lowest pricing. In-depth Technical Analysis of VFD185E43C includes Below 90% RH (non-condensing), C: CANopen, Adjustable V/F pattern & IP20. It functionality Includes 18.5 kW, 25 HP & 29 kVA. Elevate Your Project with a Quote for your requirement of Delta 25HP 460V 3-Phase CANopen. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
