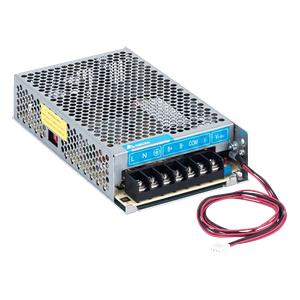

Delta PMU-13V155WCCA 9.5A 13.8V Panel Mount Power Supply
Delta PMU-13V155WCCA is a 9.5A 13.8V Panel Mount Power Supply delivering 151W output for industrial automation, control systems, and embedded modules requiring stable DC power. It provides dual outputs of 9.5A and 1.5A, ensuring reliable voltage distribution to connected devices. The unit supports selectable nominal input voltages of 100-120Vac or 200-240Vac at 50-60Hz, with broad tolerance for fluctuating industrial supplies. Designed for durability and versatility, it operates in temperatures from -20°C to +70°C and can be stored safely from -40°C to +85°C. Manufactured by Delta industrial automation, this power supply belongs to the Delta power supply solutions family and is part of the Delta Panel Mount PMU Series, providing dependable DC output for a wide range of industrial and commercial applications.
| Brand | Delta |
| Product Type | SMPS |
| Product | PMU-13V155WCCA |
Delta 9.5A 13.8V Panel Mount Power Supply PMU-13V155WCCA Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 9.5A,1.5A |
| Output Voltage | 13.8V |
| Output Voltage Adjustment Range | 12-14Vdc |
| Output Power | 151W |
| Nominal Input Voltage | 100-120Vac, 200-240Vac (Selectable by Switch) |
| Input Voltage Range | 90-132Vac, 180-264Vac (Selectable by Switch) |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| Input Current | < 2.5A @ 115Vac, < 1.5A @ 230Vac |
| Efficiency at 100% load | > 85.0% @ 115Vac > 86.0% @ 230Vac |
| Inrush Current | (Cold Start) < 25A @ 115Vac & 230Vac |
| Leakage Current | < 0.5mA @ 264Vac |
| Case Chassis / Cover | AL / SGCC |
| Indicator | LED Indicator: Green LED: DC OK Red LED: Battery Connected in Reverse Polarity |
| Cooling System | Convection |
| Unit Weight | 0.60 kg (1.32 lb) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Altitude | 0 to 5,000 Meters (16,400 ft.) |
| Pollution Degree | 2 |
| Bump Test (Operating) | IEC 60068-2-29, 10G (100m/S²) for a duration of 11ms,1000 times per direction, 3000 times in total |
| Over Voltage Category | II |
The Delta PMU-13V155WCCA Panel Mount Power Supply is engineered for continuous operation in industrial automation, communication, and embedded system environments. Its dual-output design allows simultaneous distribution of 9.5A and 1.5A to multiple devices, making it suitable for complex control systems and automation modules. The selectable input voltage feature ensures compatibility across different electrical infrastructures, providing operational flexibility for various installation sites.
Safety and efficiency are enhanced with integrated monitoring of input currents, preventing overload conditions. The Green LED DC OK indicator enables quick verification of power status, streamlining maintenance and reducing downtime. With its robust construction and wide operational temperature range of -20°C to +70°C, this power supply is capable of stable performance even under harsh industrial conditions, while the extended storage range of -40°C to +85°C ensures reliability during transport or periods of inactivity.
Engineers, system integrators, and industrial operators seeking a high-performance panel-mounted DC solution will find the Delta PMU-13V155WCCA ideal. Its 151W output at 13.8V, combined with 9.5A and 1.5A current support, provides consistent, dependable power for automation systems. IndMALL offers competitive pricing, easy quotation access, and dedicated support, ensuring that your industrial control, communication, and embedded devices receive reliable power with maximum operational stability and long-term efficiency.
