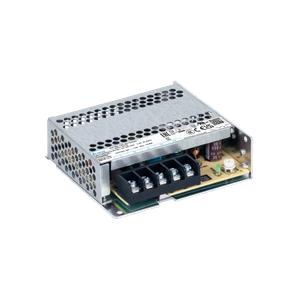

Delta PMT-24V75W2BA 3.2A 24V 76.8W Panel Mount Power Supply
Delta PMT-24V75W2BA Panel Mount Power Supply delivers stable 24V DC output at 3.2A, providing 76.8W of consistent power for industrial automation, control cabinets, and embedded devices. Its compact panel mount design allows neat installation and easy maintenance. A Green LED DC OK indicator provides immediate operational feedback. Operating efficiently with input currents of 1.4A at 115 Vac and 0.85A at 230 Vac, it minimizes energy consumption and heat generation, extending component life. Designed for harsh conditions, it operates reliably between -30°C and +70°C, with storage safety up to +85°C. Available via Delta Automation and Delta Power Supply.
| Brand | Delta |
| Product Type | SMPS |
| Product | PMT-24V75W2BA |
Delta 3.2A 24V Panel Mount Power Supply PMT-24V75W2BA Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 3.2A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 21.6-26.4Vdc |
| Output Power | 76.8W |
| Start-up Time | 500ms typ. @ 115Vac & 230Vac |
| Hold-up Time | 11ms typ. @ 115Vac, 52ms typ. @ 230Vac |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 90-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| Input Current | 1.4A typ. @ 115Vac, 0.85A typ. @ 230Vac |
| Efficiency at 100% load | 89.5% typ. @ 230Vac |
| Leakage Current | < 0.5mA @ 240Vac |
| Case Chassis / Cover | Aluminium / SGCC |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Unit Weight | 0.216 kg (0.48 lb) |
| Operating Temperature | -30°C to +70°C (-40°C Cold Start) |
| Storage Temperature | -40°C to +85°C |
| Operating Altitude | 0 to 5,000 Meters (0 to 16,400 ft) |
| Pollution Degree | 3 |
| Over Voltage Category | II (Compliance to EN 62477-1 OVC III with 2000 meters altitude) |
The Delta PMT-24V75W2BA 76.8W Panel Mount Power Supply ensures precise 24V DC output at 3.2A, delivering dependable power for industrial automation, embedded systems, and control cabinets. With a wide AC input range of 100–240 Vac and nominal frequency of 50–60 Hz, this unit accommodates fluctuating power conditions seamlessly. Its energy-efficient design operates at 1.4A input current for 115 Vac and 0.85A for 230 Vac, reducing electricity consumption and minimizing heat, which prolongs the lifespan of the power supply and connected components. Equipped with a Green LED DC OK indicator, it provides clear visual confirmation of operational status. The compact panel mount format enables organized wiring and easy accessibility for maintenance tasks. Built for challenging industrial environments, the PMT-24V75W2BA functions reliably between -30°C and +70°C, with storage safety from -40°C to +85°C. Suitable for low-power devices such as PLCs, relays, and sensors, it guarantees stable voltage for uninterrupted operation. IndMALL offers competitive pricing, fast quotations, and dedicated technical support, providing a seamless procurement experience. Combining robust construction, precise voltage regulation, and energy efficiency, the Delta PMT-24V75W2BA 76.8W Panel Mount Power Supply is a dependable solution for engineers and system integrators requiring high-quality, reliable DC power for industrial applications.
