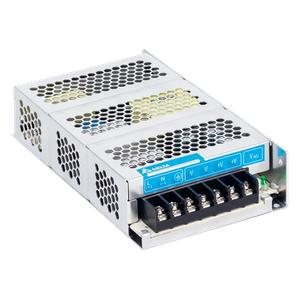

Delta PMH-24V150WCDA 24V 6.25A Panel Mount PMH Series Power Supply
Delta PMH-24V150WCDA is a 24V 6.25A Panel Mount PMH Series Power Supply designed for industrial automation, control panels, and embedded systems requiring stable DC output. Supporting a nominal input voltage of 100–240Vac, a wide input range of 85–264Vac, and a nominal frequency of 50–60Hz, it provides reliable 150W output. Perfect for PLCs, relays, and sensors, this model is part of Delta Industrial Automation, included in Delta Power Supply Solutions, and belongs to the Delta Panel Mount PMH Series, delivering consistent 24V DC power for demanding industrial applications.
| Brand | Delta |
| Product Type | SMPS |
| Product | PMH-24V150WCDA |
Delta 6.25A 24V Panel Mount Power Supply PMH-24V150WCDA Technical Specifications:
| Specification | Value |
|---|---|
| Ouput Current | 6.25A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 22-28Vdc |
| Output Power | 150W |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-375Vdc |
| Input Current | < 1.60A @ 115Vac, < 0.90A @ 230Vac |
| Efficiency at 100% load | > 89.0% @ 115Vac, > 90.5% @ 230Vac |
| Inrush Current | (Cold Start) < 30A @ 115Vac, < 60A @ 230Vac |
| Leakage Current | < 0.75mA @ 240Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Noise Sound Pressure Level (SPL) | - |
| Unit Weight | 0.56 Kg (1.23 lb) |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -30°C to +85°C |
| Operating Altitude | 0 to 5,000 Meters (16,400 ft.) |
| Pollution Degree | 3 |
| Over Voltage Category | II |
The Delta PMH-24V150WCDA 24V 6.25A Panel Mount PMH Series Power Supply ensures a reliable 150W output suitable for PLCs, relays, sensors, and other industrial control devices. Its compact panel mount form factor allows neat installation in control cabinets while maintaining operational stability under diverse industrial conditions. With input currents of <1.60A @115Vac and <0.90A @230Vac, it guarantees efficient power delivery. Operating between -30°C and +70°C, and with storage from -30°C to +85°C, the unit is designed for durability in harsh environments. Secure input and output terminals enable safe connections, while low ripple and stable line/load regulation ensure consistent output, reducing downtime risks. IndMALL offers competitive pricing, instant quotes, and responsive customer support, providing superior value compared to other suppliers. Ideal for industrial automation, the Delta PMH-24V150WCDA provides reliable 24V DC power for PLCs, relays, and sensors, improving operational efficiency, minimizing maintenance, and delivering long-term reliability in control panel applications.
