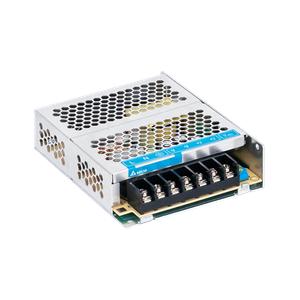

Delta PMH-24V100WCLS 24V 4.5A Panel Mount PMH Series Power Supply
Delta PMH-24V100WCLS is a 24V 4.5A Panel Mount PMH Series Power Supply engineered for industrial automation, control panels, and embedded systems requiring reliable DC output. It operates on a nominal input voltage of 100–240Vac with a wide input range of 85–264Vac and supports a nominal frequency of 50–60Hz. Delivering 108W output, it ensures stable operation for PLCs, relays, and sensors. This model is part of Delta Industrial Automation, under Delta Power Supply Solutions, and belongs to the Delta Panel Mount PMH Series, offering dependable 24V DC power for industrial control and embedded applications.
| Brand | Delta |
| Product Type | SMPS |
| Product | PMH-24V100WCLS |
Delta 4.5A 108W Panel Mount Power Supply PMH-24V100WCLS Technical Specifications:
| Specification | Value |
|---|---|
| Ouput Current | 4.5A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28Vdc |
| Output Power | 108W |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-375Vdc |
| Input Current | < 1.90A @ 115Vac, < 1.20A @ 230Vac |
| Efficiency at 100% load | > 86% @115Vac, > 88% @ 230Vac |
| Inrush Current | (Cold Start) < 25A @ 115Vac, < 50A @ 230Vac |
| Leakage Current | < 0.75mA @ 240Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Noise Sound Pressure Level (SPL) | - |
| Unit Weight | 0.31 kg (0.68 lb) |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Altitude | 0 to 5,000 Meters (16,400 ft.) |
| Pollution Degree | 2 |
| Over Voltage Category | II |
The Delta PMH-24V100WCLS 24V 4.5A Panel Mount PMH Series Power Supply delivers 108W of reliable DC output for industrial automation, PLCs, relays, and control circuits. Its compact panel mount design allows neat and organized installation in control cabinets while providing durability for harsh industrial environments. With input currents of <1.90A @115Vac and <1.20A @230Vac, the unit guarantees efficient performance under various operating conditions. It operates safely within -30°C to +70°C and can be stored from -40°C to +85°C, offering resilience against temperature extremes. This PMH Series model ensures low ripple, stable line/load regulation, and consistent output, minimizing equipment downtime. Secure input and output terminals enable fast and reliable connections, and the robust industrial-grade design ensures long-term operational reliability. IndMALL provides competitive pricing, instant quotes, and responsive support, giving superior value over other suppliers. Ideal for powering PLCs, relays, sensors, and embedded devices, the Delta PMH-24V100WCLS ensures continuous, stable, and safe 24V DC output for critical industrial applications, enhancing efficiency, reducing maintenance, and delivering long-term reliability.
