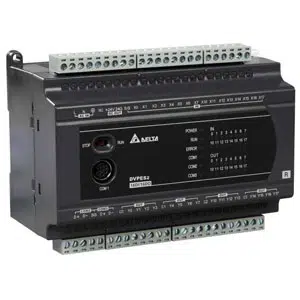

Delta DVP32ES200T Programmable Logic Controller
Delta DVP32ES200T Programmable Logic Controller (PLC) is a high-performance Standard PLC with Ethernet Communication equipped with 16 digital inputs and 16 NPN transistor outputs for fast and reliable machine control. Operating on 100–240VAC power with a 2A/250VAC fuse capacity, it supports 16k Steps program capacity and 10k words data registers. Built with strong electrical endurance including 1500VAC isolation, >5 MΩ insulation, and advanced ESD/EFT noise immunity, it ensures stable automation performance. Manufactured by Delta under the Delta Programmable Logic Controller family within the Delta DVP-ES2 Series.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP32ES200T |
Delta DVP32ES200T Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Type | CPU |
| Output Type | Transistor NPN |
| Number of Inputs and Type | 16- Digital |
| Number of Outputs and Type | 16 – Transistor |
| Power Supply Voltage | 100~240VAC (-15%~10%), 50 / 60Hz ±5% |
| Fuse Capacity | 2A/ 250VAC |
| Data register | 10k words |
| Program capacity | 16k Steps |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air DischargeEFT: Power Line, 2 kVDigital I/O: 1 kVAnalog & Communication I/O |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
| Earth | The diameter of the grounding wire shall not be shorter than that of the power supply cable.(When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Max. Input Frequency | 100KHz |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature)Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | 5%~95% (humidity)5%~95% (humidity); pollution degree 2 |
| Response Time | OFF ON: 2.5μsON→OFF: 5 μs |
The Delta DVP16ES200T PLC is built for reliable digital control in compact automation panels. As part of the Delta DVP ES2 platform, it provides 8 digital inputs and 8 transistor outputs, supporting fast switching and consistent control logic. Its AC-powered design ensures stable operation in standard industrial conditions, making it suitable for applications that require repeatable and accurate signal handling.
In industrial environments, this controller is used in packaging systems, conveyors, assembly machines, and general automation panels. The transistor output design enables precise timing and smooth actuator control, supporting efficient machine operation. The compact structure allows easy panel integration while maintaining stable performance across continuous working cycles.
The Delta DVP ES2 architecture is designed for long-term operation with strong resistance to electrical disturbances and voltage variations. As a Delta PLC Transistor Output controller, it maintains consistent output behavior under industrial load conditions. This clear relationship between model, control type, and application makes the Delta DVP16ES200T a practical solution within the ES2 PLC range for dependable automation performance.
