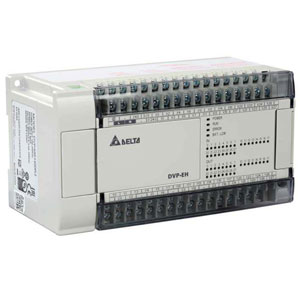

DVP32EH00T3-L: Delta PLC 16/16 Transistor Output
Technical Specifications of DVP32EH00T3-L Delta PLC 16/16 Transistor Output
| Spec | Value |
|---|---|
| Output Method | Transistor |
| Power Supply | 100 ~ 240VAC (-15% ~ 10%); 50/60Hz + -5% |
| Number of Inputs and Type | 16– Digital |
| Number of Outputs and Type | 16– Transistor |
| Power Consumption | 80VA maximum |
Delta PLC 16/16 Transistor Output DVP32EH00T3-L Technical Specifications:
| Specification | Value |
|---|---|
| Output Method | Transistor |
| Power Supply | 100 ~ 240VAC (-15% ~ 10%); 50/60Hz + -5% |
| Number of Inputs and Type | 16– Digital |
| Number of Outputs and Type | 16– Transistor |
| Fuse Capacity | 2A/250VAC |
| Power Consumption | 80VA maximum |
| Program Capacity | 32K Steps |
| Counters | 4 counters of 200 kHz input, 4 axes of 200 kHz output |
| 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) | Spike Voltage Durability |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation Humidity | 5%~95% (humidity) 5%~95% (humidity); pollution degree 2 |
| Response Time | OFF→ON: 0.15μs ON→OFF: 3 μs |
| Vibration/shock Resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
Looking for the Delta PLC 16/16 Transistor Output DVP32EH00T3-L, part of the DVP-EH3 Series. It's powered by 100-240VAC and features transistor outputs. With 16 digital inputs and outputs, it operates efficiently between 0°C and 55°C. This device boasts 4 counters and 4 axes for 200 kHz input and output, a 32K step program capacity, and a maximum power consumption of 80VA. It also handles a 24VDC input signal. For the best Delta PLC deals, IndMALL Automation is your go-to.
