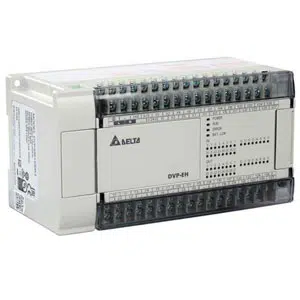

DVP32EH00MT: Delta Built-in High-Speed Counters PLC
Technical Specifications of DVP32EH00MT Delta Built-in High-Speed Counters PLC
| Spec | Value |
|---|---|
| Output Method | Differential + Transistor |
| Power Supply | 100 ~ 240VAC (-15% ~ 10%); 50/60Hz + -5% |
| Number of Inputs and Type | 16– Digital |
| Number of Outputs and Type | 16– Digital |
| Power Consumption | 60VA |
Delta Built-in High-Speed Counters PLC DVP32EH00MT Technical Specifications:
| Specification | Value |
|---|---|
| Output Method | Differential + Transistor |
| Power Supply | 100 ~ 240VAC (-15% ~ 10%); 50/60Hz + -5% |
| Number of Inputs and Type | 16– Digital |
| Number of Outputs and Type | 16– Digital |
| Fuse Capacity | 2A/250VAC |
| Power Consumption | 60VA |
| Program Capacity | 32K Steps |
| Counters | 4 counters of 200 kHz input (Differential: 2 sets), 2 axes of 200 kHz output (Differential: 2 axes) |
| 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) | Spike Voltage Durability |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation Humidity | 5%~95% (humidity) 5%~95% (humidity); pollution degree 2 |
| Response Time | OFF→ON: 0.15μs ON→OFF: 3 μs |
| Vibration/shock Resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
Looking for the Delta Built-in High-Speed Counters PLC DVP32EH00MT, part of the DVP-EH3 Series. It operates on 100-240VAC and offers a unique combination of differential and transistor outputs. With 16 digital inputs and outputs, it functions perfectly in temperatures from 0°C to 55°C. This model includes 4 counters for 200 kHz input and 2 axes for 200 kHz output, both with differential capabilities, supports a 32K step program, and consumes 60VA of power. It's also designed for a 24VDC input signal. For competitive prices on Delta PLCs, IndMALL Automation is the place to go.
