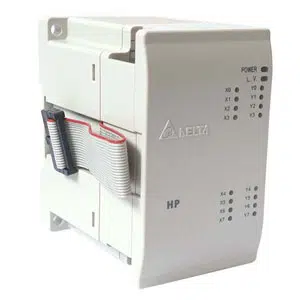

DVP16HP11R: Delta Slim 8DI/8DO Relay Module
Technical Specifications of DVP16HP11R Delta Slim 8DI/8DO Relay Module:
| Spec | Value |
|---|---|
| Output Method | Relay |
| Power Supply | 24VDC (-15%~20%) |
| Number of Inputs and Type | Digital - 16 |
| Number of Outputs and Type | 16- Relay |
| Power Consumption | 2W |
Delta Slim 8DI/8DO Relay Module DVP16HP11R Technical Specifications:
| Specification | Value |
|---|---|
| Output Method | Relay |
| Power Supply | 24VDC (-15%~20%) |
| Number of Inputs and Type | Digital - 16 |
| Number of Outputs and Type | 16- Relay |
| Fuse Capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 2W |
| Program Capacity | 4k Steps |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 10ms |
| Vibration/shock resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
Talk to Our Engineer for Delta Slim 8DI/8DO Relay Module DVP16HP11R with exclusive offers. In-depth Technical Analysis of DVP16HP11R includes 16- Relay ouput, Number of Inputs and Type Digital - 16, 24VDC (-15%~20%) power supply. Moreover, it features ES: 2A/ 250VAC; SV: 2.5A/ 30VDC fuse, Power consumption 2W, Program capacity 4k Steps . Don't Miss Out on a Quote for your requirement of Delta Slim 8DI/8DO Relay Module. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
