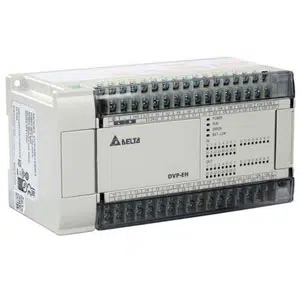

Delta DVP16EH00T3 PLC 8 Input 8 Output Transistor
Delta DVP16EH00T3 PLC is a compact controller designed for stable digital control in industrial automation systems. It provides 8 digital inputs and 8 transistor outputs with 32K steps program capacity, supporting efficient machine logic execution. This Delta PLC 8 input 8 output model operates on a 100–240VAC power supply and accepts 24VDC input signals with low power consumption for continuous operation. Built with integrated protection and reliable switching performance, it is suitable for control panels and automation equipment. Manufactured by Delta automation, it is part of the PLC controller range within the DVP-EH3 series used in industrial applications.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP16EH00T3 |
Delta DVP16EH00T3 Programmable Logic Controller 8 Input 8 Output – Technical Specifications
| Specification | Value |
|---|---|
| Output Method | Transistor |
| Power Supply | 100 ~ 240VAC (-15% ~ 10%); 50/60Hz + -5% |
| Number of Inputs and Type | 8– Digital |
| Number of Outputs and Type | 8– Transistor |
| Fuse Capacity | 2A/250VAC |
| Power Consumption | 50VA |
| Program Capacity | 32K Steps |
| Counters | 2 counters of 200 kHz input, 2 axes of 200 kHz output |
| 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) | Spike Voltage Durability |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation Humidity | 5%~95% (humidity) 5%~95% (humidity); pollution degree 2 |
| Response Time | OFF→ON: 0.15μs ON→OFF: 3 μs |
| Vibration/shock Resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
The Delta DVP16EH00T3 PLC 8 input 8 output controller is designed for reliable digital control in industrial automation systems. It combines 8 digital inputs, 8 transistor outputs, and 32K steps program capacity to manage machine operations with stable logic execution. The controller operates on a 100–240VAC power supply, supporting consistent panel integration and predictable control performance across different applications.
In industrial use, this unit is applied in packaging machines, conveyors, assembly stations, and compact automation setups where balanced input and output configuration is required. Its transistor output design supports fast switching and stable signal handling during continuous operation. The Delta PLC 8 input 8 output configuration ensures compatibility with common automation requirements, allowing efficient control of multiple processes within a single system.
From a system perspective, the Delta DVP16EH00T3 PLC follows DVP-EH3 series architecture, ensuring stable operation under standard industrial conditions. It supports structured wiring, consistent power behavior, and reliable digital input-output control across machine environments. This clear relationship between model, I/O capacity, and application makes it a practical choice for industrial automation systems requiring dependable and efficient PLC performance.
