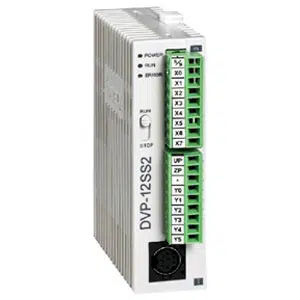

DVP12SS211S: Delta PLC 24VDC Output Voltage
The Technical Specifications of Delta PLC 24VDC Output Voltage DVP12SS211S:
- Series: Delta DVP-SS2 Series PLC
- Power Supply Voltage: 24VDC
- Output Method: Transistor(PNP)
- Program capacity: 8k steps
- Data register: 5k words
- Number of Inputs and Type: 8 - Digital
- Number of Outputs and Type: 4 - Solid State
- Operating Temperature: 0°C ~ 55°C
- Fuse capacity: 1.85A/30VDC, Polyswitch
- Power consumption: 1.5W
Delta PLC 24VDC Output Voltage DVP12SS211S Technical Specifications:
| Output Type | Transistor PNP |
| Power supply voltage | 24VDC (-15% ~ 20%) |
| Fuse Capacity | 1.85A/30VDC, Polyswitch |
| Inrush current | Max. 7.5A@24VDC |
| Data register | 5k words |
| Program Capacity | 8k Steps |
| Number of Inputs and Type | 8 – Digital |
| Number of Outputs and Type | 4 – Solid State |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O |
| Earth | The diameter of the grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | 5%~95% (humidity) 5%~95% (humidity); pollution degree 2 |
| Max. Input Frequency | 10kHz / 1kHz |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
| Input impedance | 4.7kΩ |
| Power consumption | Power consumption |
| Response Time | OFF→ON: 3.5μs ON→OFF: 20μs |
Looking for the Delta PLC 24VDC Output Voltage DVP12SS211S. It uses a 24VDC power supply and has a transistor (PNP) output. This DVP-SS2 Series can handle up to 8k steps in program capacity and has 5k words in the data register. It features 8 digital inputs and 4 solid-state outputs. Works well in temperatures from 0°C to 55°C and has a 1.85A/30VDC fuse capacity. Plus, it’s efficient with just 1.5W power consumption. Find the best prices for this PLC at IndMALL Automation.
