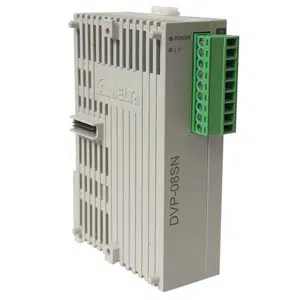

DVP08SN11R: Delta Built-in 8DO Relay
Technical Specifications of DVP08SN11R Delta Built-in 8DO Relay:
| Spec | Value |
|---|---|
| Output Method | Relay |
| Power Supply | 24VDC (-15%~20%) |
| Number of Inputs and Type | - |
| Number of Outputs and Type | 8- Relay |
| Power Consumption | 1.5W |
Delta Built-in 8DO Relay DVP08SN11R Technical Specifications:
| Specification | Value |
|---|---|
| Output Method | Relay |
| Power Supply | 24VDC (-15%~20%) |
| Number of Inputs and Type | - |
| Number of Outputs and Type | 8- Relay |
| Fuse Capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 1.5W |
| Program Capacity | 16k Steps |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 10ms |
| Vibration/shock resistance | International Standard Regulations: IEC1131-2, IEC 68-2-6 (TEST Fc)/ IEC1131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
Ask for the Pricing of Delta Built-in 8DO Relay , DVP08SN11R with budget-friendly prices. Specifications Overview for DVP08SN11R reveals 24VDC (-15%~20%), 8- Relay, ES: 2A/ 250VAC; SV: 2.5A/ 30VDC, 16k Steps . And It Comes With 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE), >5 MΩ (all I/O point-to-ground: 500VDC), Storage: -25ºC ~70ºC (temperature)
Operation: 0ºC ~55ºC (temperature). Customize Your Experience with a Quote for your requirement of Delta Built-in 8DO Relay . Our commitment to better pricing and exceptional support sets us apart from other Competitors.
