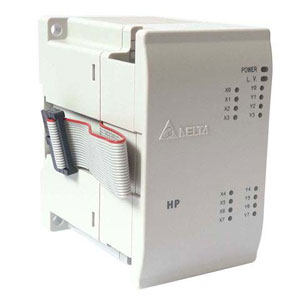

DVP08HP11R: Delta ASIC Dual Processors PLC
Technical Specifications of DVP08HP11R Delta ASIC Dual Processors PLC:
| Spec | Value |
|---|---|
| Output Method | Relay |
| Power Supply | 24VDC (-15%~20%) |
| Number of Inputs and Type | Digital - 16 |
| Number of Outputs and Type | 16- Relay |
| Power Consumption | 1.5W |
Delta ASIC Dual Processors PLC DVP08HP11R Technical Specifications:
| Specification | Value |
|---|---|
| Output Method | Relay |
| Power Supply | 24VDC (-15%~20%) |
| Number of Inputs and Type | Digital - 16 |
| Number of Outputs and Type | 16- Relay |
| Fuse Capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 1.5W |
| Program Capacity | 16k Steps |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 10ms |
| Vibration/shock resistance | International standards: IEC61131-2, IEC 68-2-6 (TEST Fc)/ IEC61131-2 & IEC 68-2-27 (TEST Ea) |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
IndMALL Dealing in Delta ASIC Dual Processors PLC DVP08HP11R at the best rates. Operational Specifications for DVP08HP11R are 16 digital inputs, durable 1.5W, 16k steps. Meets IEC standards, withstands ESD/EFT. And It Delivers 24VDC (-15%~20%) power supply, 16- Relay ouput, >5 MΩ (all I/O point-to-ground: 500VDC). Unlock Exclusive Pricing with a Quote for your requirement of Delta ASIC Dual Processors PLC. Experience the advantage of our pricing and support against other Traders.
