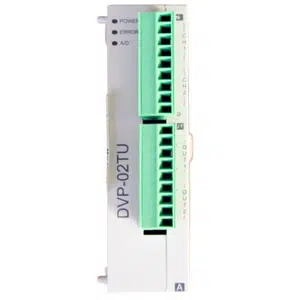

Delta DVP02TUN-S Programmable Logic Controller Module
Delta DVP02TUN-S Programmable Logic Controller module is designed for advanced temperature measurement and process control in industrial automation systems. This Delta PLC module functions as a universal analog input unit, supporting multiple signal types including voltage, current, thermocouples, and RTD sensors. It enables flexible integration into control systems where different sensor inputs need to be handled within a single module. The unit provides stable signal processing with high resolution, ensuring accurate monitoring and control performance. Developed under Delta automation solutions, it belongs to the programmable controller category and is part of the DVP-S Series PLC used in specialized automation applications.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP02TUN-S |
Delta DVP02TUN-S Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Built-in | Output point: built-in PID program control / manual control |
| Power Supply Voltage | 24VDC (-15%~20%) |
| Resolution | Analog 16-bit; Sensor: 0.1 °C |
| Analog I/O Modules | 2 points of universal Analog input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA; Thermocouple: J, K, R, S, T, E, N, B, C, L, U, TXK, PLII; RTD: Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000, LG-Ni1000 / 4 points of NPN transistor output: 24VDC / 300mA |
| Fuse capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 2.4 W maximum |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΩ (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storagr Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage Operation Humidity | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Response Time | 0.5ms |
| Input Signal Voltage | 24VDC ±10% (5 mA) |
The Delta DVP02TUN-S is built to provide precise and flexible input handling in systems where multiple sensor types are used for temperature and process monitoring. Its universal input design allows it to process different signal formats, ensuring accurate data conversion and stable operation across varying industrial conditions. The module supports integrated control functions for consistent performance.
In industrial applications, this module is used in process control systems, heating applications, and automation setups where multi-sensor input handling is required. It enables system integrators to capture data from different sensors, manage process variables, and maintain stable system performance. The integrated output capability supports direct control of connected devices.
From a system integration perspective, the Delta DVP02TUN-S fits automation environments that require flexible input handling and dependable signal processing. It supports long-term operation under industrial conditions while maintaining consistent accuracy. This makes it a practical choice for applications that require universal sensor compatibility and stable performance in temperature and process control systems.
