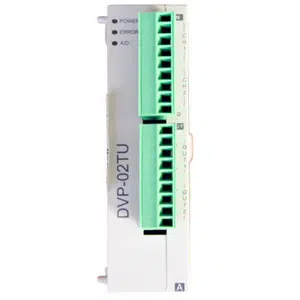

Delta DVP02TUL-S Programmable Logic Controller
The Delta DVP02TUL-S Programmable Logic Controller (PLC) is a versatile Temperature Measurement Module featuring 2 universal analog input channels supporting 0β10V, 0β20mA, 4β20mA, thermocouples J, K, R, S, T, E, N, B, C, L, U, TXK, PLII, and RTD sensors including Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000, LG-Ni1000. It provides 16-bit analog resolution, 0.1Β°C sensor accuracy, and 2 analog outputs (0β10V, 0β20mA, 4β20mA) with built-in PID/manual control. Manufactured by Delta, part of the Delta Programmable Logic Controller family within the Delta DVP-S Series.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP02TUL-S |
Delta DVP02TUL-S Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Built-in | Output point: built-in PID program control / manual control |
| Power Supply Voltage | 24VDC (-15%~20%) |
| Resolution | analog 16-bit; Sensor: 0.1 Β°C |
| Analog I/O Modules | 2 points of universal analog input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA; Thermocouple: J, K, R, S, T, E, N, B, C, L, U, TXK, PLII; RTD: Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000, LG-Ni1000 / 2 points of analog output: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA |
| Fuse capacity | ES: 2A/ 250VAC; SV: 2.5A/ 30VDC |
| Power Consumption | 2.4 W |
| Spike Voltage Durability | 1500VAC (Primary-secondary); 1500VAC (Primary-PE); 500VAC (Secondary-PE) |
| Insulation Impedance | >5 MΞ© (all I/O point-to-ground: 500VDC) |
| Noise Immunity | ESD: 8 kV Air Discharge EFT: Power Line, 2 kV Digital I/O: 1 kV Analog & Communication I/O: 1 kV RS: 26 MHz~1GHz, 10V/m |
| Earth | The diameter of grounding wire shall not be shorter than that of the power supply cable. (When many PLCs are in use at the same time, please make sure every PLC is properly grounded.) |
| Storagr Operation Temperature | Storage: -25ΒΊC ~70ΒΊC (temperature) Operation: 0ΒΊC ~55ΒΊC (temperature) |
| Storage Operation Humidity | Storage: -25ΒΊC ~70ΒΊC (temperature) Operation: 0ΒΊC ~55ΒΊC (temperature) |
| Response Time | 3ms |
| Input Signal Voltage | 24VDC Β±10% (5 mA) |
Send Your Inquiry for Delta PLC Analog 16-Bit Resolution DVP02TUL-S with cost-effective solutions. Key Technical Features of DVP02TUL-S are 2 points of universal analog input: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA; Thermocouple: J, K, R, S, T, E, N, B, C, L, U, TXK, PLII; RTD Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000, LG-Ni1000, Resolution analog 16-bit; Sensor: 0.1 Β°C. And It Delivers 2 points of analog output: 0 ~ 10 V, 0 ~ 20 mA, 4 ~ 20 mA, Output point built-in PID program control / manual control, temperature measurement module. Navigate Your Needs with a Quote for your requirement of Delta PLC Analog 16-Bit Resolution. Our pricing and support are unrivaled, especially when compared to other Competitors.
