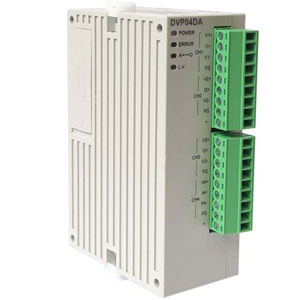

Delta DVP02TUL-S High-Speed Load Cell Module
Delta DVP02TUL-S Programmable Logic Controller Module is a high-accuracy load cell interface designed for precision weighing and force measurement in industrial automation systems. It supports a single channel of load-cell signal input with a measurable range of 0–6 mV/V and delivers stable acquisition with 20-bit resolution. Compatible with both 4-wire and 6-wire load-cell sensors, the module ensures consistent signal processing in dynamic environments. This unit is widely used in applications requiring real-time weight monitoring and control. Manufactured by Delta automation, it is part of the PLC control systems and belongs to the DVP-S series modules used in industrial setups.
| Brand | Delta |
| Product Type | Programmable Logic Controller |
| Model Number | DVP01LC-SL |
Delta DVP01LC-SL Programmable Logic Controller - Technical Specifications
| Specification | Value |
|---|---|
| Type | Load Cell Module |
| Resolution | 20-bit |
| Supports | 1 channel of load cell signal input |
| Connectable | 4-wire / 6-wire load cell sensor |
| Termination Style | Pluggable Screw Terminal |
| Max. current consumption | 125 mA |
| Input signal range | ± 40 mVDC |
| Communication port | RS-232, RS-485 |
| Power Supply Voltage | 24VDC (-15%~20%) |
| Power consumption | 3 W |
| Max. output current | 5 VDC * 300 mA |
| Permitted load cell resistance | 40 to 4,010 Ω |
| Isolation method | 500 VAC between digital circuits and Ground 500 VAC between analog circuits and Ground 500 VAC between analog circuits and digital circuits |
| Storage /Operation Temperature | Storage: -25ºC ~70ºC (temperature) Operation: 0ºC ~55ºC (temperature) |
| Storage /Operation humidity | 5%~95% (humidity) 5%~95% (humidity); pollution degree 2 |
| Response Time | 2, 10, 20, 40, 80, 200, 380 ms × channels |
| Vibration/shock immunity | International standards: IEC 61131-2, IEC 68-2-6 (TEST Fc)/IEC 61131-2 & IEC 68-2-27 (TEST Ea) |
Delta DVP02TUL-S module is designed to handle high-speed load cell data with stable and accurate signal conversion in industrial environments. It is commonly integrated into automation panels where precise weight or force measurement is required for continuous operations. Engineers selecting this module typically consider it for its ability to process low-voltage signals with minimal noise, ensuring consistent data output for control systems.
In practical applications, the module supports packaging machines, batching systems, filling processes, and material handling units that rely on accurate weight feedback. Its compatibility with standard load-cell configurations allows smooth integration into existing systems, maintaining stable performance across varying load conditions. The design supports real-time monitoring, helping improve process accuracy and operational efficiency.
From a system perspective, the Delta DVP02TUL-S strengthens the connection between measurement input and PLC-based control logic. Its structured integration within the DVP-S series ensures reliable communication and consistent response in automation workflows. This alignment between module design, measurement capability, and industrial application makes it a practical choice for precision control environments.
