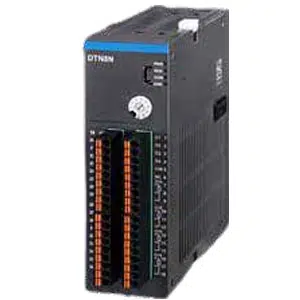

DTN4RPTV: Delta Power input terminal Temperature Controller
Technical Specifications of Delta Power input terminal Temperature Controller DTN4RPTV:
| Spec | Value |
|---|---|
| Channel Number | 4-channel |
| Input Power Supply | DC 24 V, isolated switching power |
| Operating Voltage Range | 90 % - 110 % rated voltage |
| Input Type | Platinum RTD |
Delta Power input terminal Temperature Controller DTN4RPTV Technical Specifications:
| Specification | Value |
|---|---|
| Channel Number | 4-channel |
| Input Power Supply | DC 24 V, isolated switching power |
| Operating Voltage Range | 90 % - 110 % rated voltage |
| Input Type | Platinum RTD |
| Power Consumption (Max.) | 3.5W |
| Mounting Methods | DIN rail |
| Input Sensor Support | Platinum temperature resistance measurement: Pt100, JPt100, Ni120, Cu50 |
| Sampling Frequency | 0.4 seconds / All input channels |
| Control Methods | PID, ON / OFF |
| Voltage pulse output | Voltage pulse DC 12 V ± 10 %, max. rated output current 20 mA |
| Analog Current Output | 4-20 mA (load impedance ≦ 500 Ω) |
| Analog Voltage | 0-10 V (load impedance ≧ 1,000 Ω) |
| Communication Functions | RS-485 DIP Switch: supports baud rates of 4,800 - 115,200 bps |
| Internal Connection | Features internal connection terminals for 24 V power supply and communication signal transmission |
| Vibration Resistance | 10 ~ 55 Hz, 10 m / s² for 10 mins in X, Y, Z directions |
| Shock Resistance | Max. 300 m / s², 3 times in 3 axes and 6 directions |
| Operating Ambient Temperature | 0 ~ + 50 °C |
| Storage Temperature | - 20 ~ + 65 °C |
| Operating Altitude | < 2,000 m |
| Operating Ambient Humidity | 35 ~ 85 % RH (non-condensing) |
| Pollution Degree | 2 |
| Weight | 200 g |
Talk to Our Engineer for Delta Power input terminal Temperature Controller, DTN4RPTV with exclusive offers. In-depth Technical Analysis of DTN4RPTV includes Platinum temperature resistance measurement: Pt100, JPt100, Ni120, Cu50, DIN rail, 3.5W, Platinum RTD
0.4 seconds / All input channels. Moreover, it features 4-channel, 90 % - 110 % rated voltage, DC 24 V, isolated switching power
