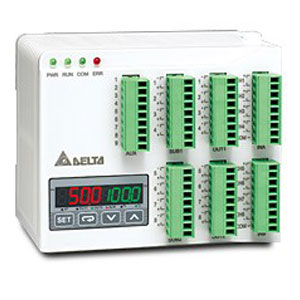

Delta DTE10P Platinum Resistance Pt100
Delta DTE10P is an industrial temperature control module designed for accurate platinum resistance temperature monitoring and stable automation performance. This Delta Platinum Resistance Pt100 module supports DC 24V operation with isolated switching power supply architecture for dependable industrial process applications. The module supports PID, programmable PID, manual, and ON/OFF control modes while offering 12 configurable alarm modes for process monitoring flexibility. Manufactured by Delta, the DTE10P belongs to the Delta Temperature Controller category and is used across industrial heating and temperature regulation systems. Explore the full Delta DTE & DTK Temperature Controllers.
| Brand | Delta |
| Product Type | Temperature Controller |
| Product | DTE10P |
Delta Platinum Resistance (Pt100) DTE10P Technical Specifications:
| Specification | Value |
|---|---|
| Channel / Output | 0P: 4-channel PT |
| Power input | DC 24V, isolated switching power supply |
| Voltage range | 90% ~ 110% rated voltage |
| Control method | PID, PID programmable, manual, ON/OFF |
| Power consumption | Max. 10W + 3W × number of DTC2000 controllers connected in parallel (Max. 7) |
| Sampling cycle | Thermocouple or platinum resistance: 1.0 second/all input |
| Alarm modes | 12 alarm modes available |
| Input sensor | Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK Input sensor Platinum resistance: Pt100, JPt100, Cu50 |
| Output accessories (optional) | Relay output: SPST, Max. AC 250V load, 3A resistive load Voltage pulse output: DC 24V, Max. 40mA current output Current output: DC 4 ~ 20mA output (resistive load < 500); for OUT1 and OUT2 only Analog voltage output: 0 ~ 10V (resistive load > 1,000); for OUT1 and OUT2 only |
| Output functions | Control output, alarm output or proportional output (proportional output is only applicable in the model with linear voltage and current output for OUT1, OUT2) |
| Communication | RS-485 digital communication; supports baud rate 2,400bps ~ 115,200bps |
| Communication protocol | Supports Modbus ASCII/RTU |
| Vibration Resistance | 10 ~ 55Hz 10m/s2 3 axes 10mins |
| Shock Resistance | Max. 300m/s2 3 axes 6 directions, 3 times each |
| Ambient Temperature | 0°C ~ +50°C |
| Storage Temperature | -20°C ~ +65°C |
| Operation altitude | < 2,000m |
| Ambient humidity | 35% to 85% RH (non-condensing) |
| Pollution degree | 2 |
The DELTA DTE10P temperature control module is commonly used in industrial automation systems requiring stable Pt100 platinum resistance input monitoring and accurate temperature regulation. Applications involving furnaces, industrial ovens, packaging systems, plastic machinery, and heating processes benefit from dependable multi-channel temperature management. Its 4-channel PT input capability supports consistent industrial process monitoring across demanding environments.
Industrial systems integrating the DTE10P benefit from stable control performance and flexible operational configuration. The module supports parallel connection with DTC2000 controllers and delivers efficient one-second input processing performance for all connected channels. Its programmable PID functionality helps maintain process consistency while supporting precise industrial temperature management requirements.
For industries searching for a Delta Platinum Resistance Pt100 module, the DTE10P provides dependable temperature control capability, configurable alarm management, and stable automation performance. The module supports both new industrial automation installations and replacement requirements involving precision temperature regulation applications. Within the Delta automation category, it remains a practical solution for industrial process environments requiring reliable Pt100 temperature monitoring performance.
