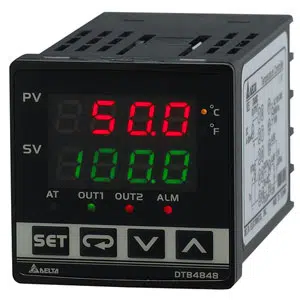

Delta DTB4848VR Temperature Controllers
Delta DTB4848VR Temperature Controller is designed for industrial process temperature regulation and stable thermal monitoring applications within automation systems. This 1/16 DIN W48 × H48mm controller operates on AC100 ~ 240V, 50/60Hz and DC24V±10% input power while supporting thermocouple and Platinum RTD monitoring with dependable process response performance. It features selectable decimal point configuration and EEPROM 4K bit non-volatile memory for stable industrial parameter retention during continuous operation. Manufactured by Delta Industrial Automation Solutions, part of the Delta Temperature Control Systems family within the Delta DTB Series Controllers.
| Brand | Delta |
| Product Type | Temperature Controller |
| Product | DTB4848VR |
Delta 48x48mm Temperature Controller DTB4848VR Technical Specifications:
| Specification | Value |
|---|---|
| Panel Size (W×H) | 1/16 DIN W48 × H48mm |
| Input Voltage | AC100 ~ 240V, 50/60Hz; DC24V±10% |
| Operation Voltage Range | Rated voltage: AC 85% ~ 110%; DC 90 ~ 110% |
| Power Consumption | 5VA max. |
| Memory Protection | EEPROM 4K bit (non-volatile memory (number of writes: 100,000) |
| Display Method | 2 line x 4 character 7-segment LED display Process value (PV): Red color, Set point (SV): Green color |
| Sensor Type | Thermocouple: K, J, T, E, N, R, S, B, L, U, TXK 3-wire Platinum RTD: Pt100, JPt100 Analog input: 0 ~ 5V, 0 ~ 10V, 0 ~ 20 m A, 4 ~ 20 m A, 0 ~ 50mV |
| Control Mode | PID, ON/OFF, Manual or PID program control (Ramp/Soak control) |
| Control Output | Relay output: SPDT (SPST: 1/16 DIN and 1/32 DIN size), Max. load 250VAC, 5A resistive load Voltage pulse output: DC 14V, Max. output current 40mA Current output: DC 4 ~ 20m A output (Load resistance: Max. 600) Linear voltage output: 0 ~ 10V |
| Display Accuracy | 0 or 1 digit to the right of the decimal point (selectable) |
| Sampling Rate | Analog input: 150 msec/ per scan Thermocouple or Platinum RTD: 400 msec/per scan |
| RS-485 Communication | MODBUS ASCII / RTU communication protocol |
| Vibration Resistance | 10 to 55Hz, 10m/s2 for 10min, each in X, Y and Z directions |
| Shock Resistance | Max. 300m/ s2, 3 times in each 3 axes, 6 directions |
| Ambient Temperature | 0oC ~ +50oC |
| Storage Temperature | -20oC ~ +65oC |
| Altitude | 2,000m or less |
| Relative Humidity | 35% ~ 80% (non-condensing) |
| Panel Protection Level | IP65 |
| 1st Output Group Selection | R: Relay output, SPDT (SPST: 1/16 DIN and 1/32 DIN size), 250VAC, 5A V: Voltage pulse output, 14V +10% ~ -20% (Max. 40mA) C: DC current output , 4 ~ 20mA L: Linear voltage output, 0 ~ 10VDC |
| 2nd Output Group Selection | R: Relay output, SPDT (SPST: 1/16 DIN and 1/32 DIN size), 250VAC, 5A V: Voltage pulse output, 14V +10% ~ -20% (Max. 40mA) |
| EVENT inputs / CT function (optional) | None: No EVENT input , No CT (Current transformer) E: EVENT input is provided, No CT (Current transformer) T: CT (Current transformer) is provided, No EVENT input V: Valve control |
The Delta DTB4848VR temperature controller is commonly used in industrial heating systems, packaging equipment, ovens, process machinery, and automation panels requiring stable thermal management and continuous monitoring performance. Its 48 × 48 mm DIN panel structure supports organized installation across industrial control cabinet environments where accurate temperature regulation is essential.
Industrial systems integrating the Delta DTB4848VR benefit from dependable process monitoring supported by analog input scanning at 150 msec per scan and thermocouple or Platinum RTD response at 400 msec per scan. The EEPROM non-volatile memory with up to 100,000 write cycles helps maintain stable parameter storage for continuous industrial automation operation and process reliability.
For industries searching for a Delta Temperature Controller, the Delta DTB4848VR provides dependable industrial temperature regulation capability, stable process monitoring, and compact DIN panel integration. Within the Delta DTB Series, it remains a practical solution for industrial automation systems requiring consistent thermal control and dependable process management performance.
