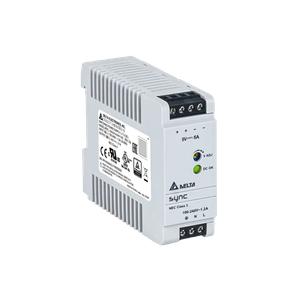

Delta DRS-5V50W1NR 5A 5V DIN Rail Power Supply
Delta DRS-5V50W1NR is a 5A 5V DIN Rail Power Supply engineered for industrial automation, control panels, and embedded devices requiring stable DC output. It operates with a nominal input voltage of 100-240Vac and supports a wide input range of 85-264Vac, ensuring consistent performance across industrial environments. Its compact DIN Rail mounting allows neat and organized installation in control cabinets. Manufactured by Delta industrial automation, this model is part of the Delta power supply solutions category and belongs to the Delta DIN Rail SYNC Series, providing dependable 5V DC power for embedded systems, industrial automation, and process control panels.
| Brand | Delta |
| Product Type | SMPS |
| Product | DRS-5V50W1NR |
Delta 5A 5V DIN Rail Power Supply DRS-5V50W1NR Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 5A |
| Output Voltage | 5V |
| Output Voltage Adjustment Range | 5.0-5.5VDC |
| Output Power | 50W |
| Line Regulation | < 0.5% (@ 85-264Vac, 100% load) |
| Load Regulation | < 1.0% (@ 85-264Vac, 0-100% load) |
| PARD | < 50mVpp @ > 0°C to 70°C < 100mVpp @ 0°C to -20°C |
| Start-up Time | < 2,000ms @ 115Vac (100% load) < 1,000ms @ 230Vac (100% load) |
| Hold-up Time | > 20ms @ 115Vac (100% load) > 100ms @ 230Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 85-264Vac input, 10-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz) |
| Start-up with Capacitive Loads | 3,000μF Max |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-375VDC |
| Input Current | < 0.6A@115Vac, < 0.4A @ 230Vac |
| Efficiency at 100% load | > 82%@ 115Vac & 230Vac |
| Inrush Current | < 30A @ 115Vac, < 60A @ 230Vac |
| Leakage Current | < 0.75 mA @ 264 Vac |
| Power Dissipation | 0% load: < 0.7W @ 115Vac & 230Vac 100% load: < 7.0W @ 115Vac & 230Vac |
| Case Chassis / Cover | Plastic |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Unit Weight | 0.16 kg (0.35 lb) |
| Vibration (Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions |
| Shock Test (Operating) | IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis |
| Operating Temperature | -20°C to +70°C (Cold start at -40°C @ 40% load) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | -10°C to -20°C de-rate power by 2% / °C > 55°C de-rate power by 3.33% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions |
| Pollution Degree | 2 |
| Rise Time | < 30ms @ nominal input (100% load) |
| Operating Altitude | 0 to 2,000 Meters (6,560 ft.) |
The Delta DRS-5V50W1NR 5A 5V DIN Rail Power Supply is ideal for embedded systems, factory automation panels, and industrial control circuits requiring a stable 5V DC output. With a 5A current rating and 50W power capacity, it provides reliable power to multiple devices while maintaining efficiency and operational stability. Its wide input range ensures compatibility with varying industrial power conditions, reducing the need for external voltage regulation or stabilization equipment.
Equipped with secure input and output terminals, this DIN Rail unit allows fast and reliable connections. Its compact design ensures neat installation within industrial control cabinets. The Green LED DC OK indicator allows quick visual confirmation of operational status, while the unit’s operating temperature range from -20°C to +70°C and storage temperature from -40°C to +85°C guarantees durability even in harsh industrial environments.
For engineers, integrators, and industrial operators seeking dependable 5A 5V DIN Rail solutions, the Delta DRS-5V50W1NR delivers stable output, energy-efficient operation, and industrial-grade reliability. IndMALL provides competitive pricing, instant quotes, and responsive support, offering superior value over other suppliers. Its compact form factor, robust construction, and consistent performance make it ideal for embedded devices, industrial automation systems, and process control panels, reducing downtime, improving productivity, and ensuring long-term operational efficiency.
