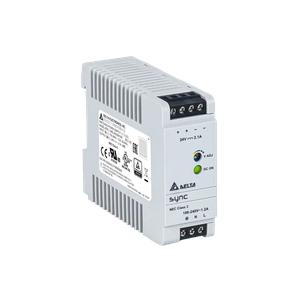

Delta DRS-24V50W1NZ 2.1A 50W DIN Rail Power Supply
Delta DRS-24V50W1NZ is a 2.1A 50W DIN Rail Power Supply designed for industrial control panels, embedded systems, and automation devices requiring stable DC output. The unit supports a nominal input voltage of 100-240Vac and a wide input range of 85-264Vac, ensuring dependable operation across diverse industrial environments. Its compact DIN Rail mounting allows for organized installation in control cabinets. Manufactured by Delta industrial automation, this model belongs to the Delta power supply solutions category and is part of the Delta DIN Rail SYNC Series, offering reliable 24V DC power for automation systems, embedded devices, and industrial control setups.
| Brand | Delta |
| Product Type | SMPS |
| Product | DRS-24V50W1NZ |
Delta 2.1A 50W DIN Rail Power Supply DRS-24V50W1NZ Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 2.1A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28VDC |
| Output Power | 50W |
| Line Regulation | < 0.5% (@ 85-264Vac, 100% load) |
| Load Regulation | < 1.0% (@ 85-264Vac, 0-100% load) |
| PARD | < 70mVpp @ > 0°C to 70°C < 100mVpp @ 0°C to -20°C |
| Start-up Time | < 2,000ms @ 115Vac (100% load) < 1,000ms @ 230Vac (100% load) |
| Hold-up Time | > 20ms @ 115Vac (100% load) > 100ms @ 230Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz) |
| Start-up with Capacitive Loads | 3,000μF Max |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-375VDC |
| Input Current | < 0.9A@115Vac, < 0.55A @ 230Vac |
| Efficiency at 100% load | > 88%@ 115Vac, > 89% @ 230Vac |
| Inrush Current | < 30A @ 115Vac, < 50A @ 230Vac |
| Leakage Current | < 0.5 mA @ 264 Vac |
| Power Dissipation | 0% load: < 0.3W @ 115Vac, < 0.4W@ 230Vac 100% load: < 6W @ 115Vac & 230Vac |
| Case Chassis / Cover | Plastic |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Unit Weight | 0.18 kg (0.40 lb) |
| Vibration (Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions |
| Shock Test (Operating) | IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis |
| Operating Temperature | -20°C to +70°C (Cold start at -40°C@ 40% load) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | -10°C to -20°C de-rate power by 2% / °C > 55°C de-rate power by 3.33% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions |
| Pollution Degree | 2 |
| Operating Altitude | 0 to 2,000 Meters (6,560 ft.) |
The Delta DRS-24V50W1NZ 2.1A 50W DIN Rail Power Supply is ideal for factory automation panels, embedded control systems, and industrial electronics requiring a consistent 24V DC output. With a 2.1A current rating and 50W power capacity, it delivers reliable voltage for multiple devices while maintaining efficient energy use and operational stability. Its wide input range ensures compatibility across various industrial power conditions, reducing the need for additional converters or stabilizers.
Equipped with a Green LED DC OK indicator, this DIN Rail unit provides quick visual verification of operational status. Secure input and output terminals enhance connectivity, while the compact DIN Rail form factor ensures neat, organized installation in control cabinets. With operating temperatures from -20°C to +70°C and storage from -40°C to +85°C, it withstands challenging industrial environments and provides long-term durability and reliability for continuous operation.
For engineers, system integrators, and industrial operators seeking dependable 2.1A 50W DIN Rail solutions, the Delta DRS-24V50W1NZ ensures stable output, energy efficiency, and robust performance. IndMALL offers competitive pricing, rapid quotations, and dedicated support, delivering superior value over other suppliers. Its compact size, consistent performance, and industrial-grade design make it suitable for embedded devices, factory automation panels, and process control systems, reducing downtime, optimizing productivity, and ensuring long-term operational efficiency.
