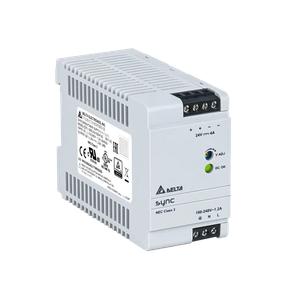

Delta DRS-24V100W1NZ 3.8A 100W DIN Rail Power Supply
Delta DRS-24V100W1NZ is a 3.8A 100W DIN Rail Power Supply designed for industrial automation systems, embedded control units, and factory process equipment requiring stable 24V DC output. It supports a nominal input voltage of 100-240Vac and a wide input range of 85-264Vac, ensuring consistent performance across diverse industrial environments. Its compact design and DIN Rail mounting allow organized installation within control cabinets. Manufactured by Delta industrial automation, this unit belongs to the Delta power supply solutions category and is part of the Delta DIN Rail SYNC Series, providing reliable, high-efficiency 24V DC power for embedded systems, automation panels, and industrial machinery.
| Brand | Delta |
| Product Type | SMPS |
| Product | DRS-24V100W1NZ |
Delta 3.8A 100W DIN Rail Power Supply DRS-24V100W1NZ Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 3.8A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 22-24VDC |
| Output Power | 100W |
| Line Regulation | < 0.5% (@ 85-264Vac, 100% load) |
| Load Regulation | < 1.0% (@ 85-264Vac, 0-100% load) |
| PARD | < 50mVpp @ > 0°C to 70°C < 100mVpp @ 0°C to -20°C |
| Start-up Time | < 2,500ms @ 115Vac (100% load) < 1,500ms @ 230Vac (100% load) |
| Hold-up Time | > 50ms @ 115Vac & 230Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 85-264Vac input, 0-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz) |
| Start-up with Capacitive Loads | 3,000μF Max |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-375VDC |
| Input Current | < 1.2A@115Vac, < 0.6A @ 230Vac |
| Efficiency at 100% load | > 89%@ 115Vac & 230Vac |
| Inrush Current | < 25A @ 115Vac, < 40A@ 230Vac |
| Leakage Current | < 0.5 mA @ 264 Vac |
| Power Dissipation | 0% load: < 0.4W @ 115Vac & 230Vac 100% load: < 11W @ 115Vac & 230Vac |
| Case Chassis / Cover | Plastic |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Unit Weight | 0.325 kg (0.72 lb) |
| Vibration (Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz; 2G peak; displacement of 0.35mm; 1 octave per min; 60 min per axis for all X, Y, Z directions |
| Shock Test (Operating) | IEC 60068-2-27, Half Sine Wave: 10G for a duration of 11ms; 1 time in X axis |
| Operating Temperature | -20°C to +70°C (Cold start at -40°C@ 40% load) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | -10°C to -20°C de-rate power by 2% / °C > 55°C de-rate power by 3.33% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC60068-2-27, Half Sine Wave: 50G for a duration of 11ms; 3 times per direction, 9 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, Random: 5-500Hz; 2.09Grms, 20 min per axis for all X, Y, Z directions |
| Pollution Degree | 2 |
| Rise Time | < 100ms @ nominal input (100% load) |
| Power Factor at 100% load | > 0.97 @ 115Vac, > 0.9 @ 230Vac |
| Operating Altitude | 0 to 2,000 Meters (6,560 ft.) |
The Delta DRS-24V100W1NZ 3.8A 100W DIN Rail Power Supply is suitable for industrial control cabinets, embedded automation systems, and factory automation setups requiring continuous 24V DC output. Its 3.8A output current and 100W power capacity allow powering multiple devices simultaneously while maintaining stable voltage and reliable performance. The wide input voltage range reduces the need for additional converters and ensures compatibility with different industrial installations, enhancing operational efficiency.
Equipped with a Green LED DC OK indicator, this DIN Rail Power Supply provides a visual confirmation of operational status, helping engineers monitor systems efficiently. The unit’s DIN Rail mounting enables compact, organized installation within control panels. Robust input and output terminals offer secure electrical connections, and its high reliability under extreme environments ensures consistent operation across industrial facilities. The power supply operates effectively with an operating temperature from -20°C to +70°C and supports storage from -40°C to +85°C, making it durable for long-term industrial use.
For system integrators, engineers, and industrial operators looking for a dependable 24V DC DIN Rail solution, the Delta DRS-24V100W1NZ offers stable output, high efficiency, and robust design. IndMALL guarantees competitive pricing, quick quotations, and dedicated support, providing superior value compared to other suppliers. Its reliable performance, compact footprint, and versatility make it ideal for automation systems, embedded applications, and industrial process control, ensuring consistent operation, minimized downtime, and increased productivity across all automation environments.
