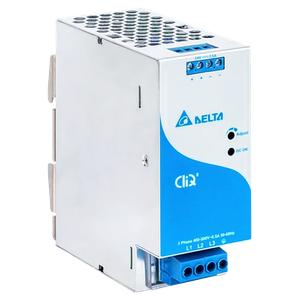

Delta DRP024V060W3BA 2.5A 24V DIN Rail Power Supply
Delta DRP024V060W3BA is a 2.5Amp 24V DIN Rail Power Supply designed for industrial automation, three-phase control panels, and process equipment requiring dependable DC output. Supporting a nominal input voltage of 3 x 400–500Vac with a wide input range of 3 x 320–600Vac, it ensures stable performance in diverse industrial environments. Its compact DIN Rail form factor allows organized installation in control cabinets. Manufactured by Delta industrial automation, this model belongs to the Delta power supply solutions category and is part of the Delta DIN Rail CliQ II Series, delivering reliable 24V DC output for embedded systems, industrial automation, and process control applications.
| Brand | Delta |
| Product Type | SMPS |
| Product | DRP024V060W3BA |
Delta 2.5Amp DIN Rail Power Supply DRP024V060W3BA Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 2.5A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28Vdc |
| Output Power | 60W |
| Line Regulation | < 0.5% (@ 3 x 320-600Vac input, 100% load) |
| Load Regulation | < 1.0% (@ 3 x 320-600Vac input, 0-100% load) |
| PARD | < 150mVpp |
| Start-up Time | < 1,000ms @ nominal input (100% load) |
| Hold-up Time | > 20ms @ 3 x 400Vac, > 40ms @ 3 x 500Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 3 x 320-600Vac input, 0-100% load (Slew Rate: 0.1A/μs, 50% duty cycle @ 5Hz to 1KHz) |
| Start-up with Capacitive Loads | 10,000µF Max |
| Rise Time | < 100ms @ nominal input (100% load) |
| Nominal Input Voltage | 3 x 400-500Vac |
| Input Voltage Range | 3 x 320-600Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 450-800Vdc |
| Input Current | < 0.30A @ 3 x 400Vac, < 0.25A @ 3 x 500Vac |
| Efficiency at 100% load | > 86.0% @ 3 x 400Vac & 3 x 500Vac |
| Inrush Current | < 30A @ 3 x 400Vac & 3 x 500Vac |
| Power Factor at 100% load | - |
| Leakage Current | < 3.5mA @ 500Vac |
| Power Dissipation | 0% load: < 3.0W @ 3 x 400Vac, < 4.0W @ 3 x 500Vac 100% load: < 8.7W @ 3 x 400Vac & 3 x 500Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Input Terminal | 4 Pins (Rated 600V/35A) |
| Output Terminal | 4 Pins (Rated 300V/28A) |
| Noise Sound Pressure Level (SPL) | < 40dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input / Output: AWG 18-12 |
| Unit Weight | 0.66 kg (1.46 lb) |
| Operating Temperature | -25°C to +80°C (Cold Start at -40°C) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | Vertical: > 50°C de-rate power by 2.5% / °C, > 70°C de-rate power by 5%/ °C Horizontal: > 45°C de-rate power by 2.5% / °C, > 55°C de-rate power by 1.66% / °C, > 70°C de-rate power by 5% / °C |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, 30G (300m/S²) for a duration of 18ms, 1 times per direction, 2 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, 10Hz to 500Hz @ 30m/S² (3G peak); 60 min per axis for all X, Y, Z direction |
| Operating Altitude | 0 to 2,500 Meters (8,200 ft.) for ITE application 0 to 2,000 Meters (6,560 ft.) for Industrial application |
| Pollution Degree | 2 |
| Bump Test (Operating) | IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total |
| Over Voltage Category | III According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part) |
The Delta DRP024V060W3BA 2.5A 24V DIN Rail Power Supply is ideal for three-phase industrial automation, control cabinets, and machinery requiring steady 24V DC output. With a 2.5A current rating and 60W power capacity, it provides efficient energy delivery while maintaining operational reliability. Its broad input voltage range ensures compatibility with diverse industrial power conditions, minimizing the need for additional voltage regulation or stabilizers.
Equipped with secure input and output terminals rated at 600V/35A and 300V/28A, the DRP024V060W3BA allows fast and dependable connections. A Green LED DC OK indicator gives clear operational feedback. Its DIN Rail mounting ensures tidy cabinet installation, while an operating temperature range from -25°C to +80°C and storage range of -40°C to +85°C ensures reliable function under extreme industrial conditions.
For engineers, integrators, and industrial operators looking for a robust 2.5Amp DIN Rail Power Supply, the Delta DRP024V060W3BA delivers energy efficiency, stable output, and industrial-grade durability. IndMALL offers competitive pricing, instant quotes, and dedicated support, providing superior value over other distributors. Its compact size, reliable performance, and rugged design make it ideal for embedded devices, automation systems, and industrial process control, improving uptime, efficiency, and long-term operational reliability.
