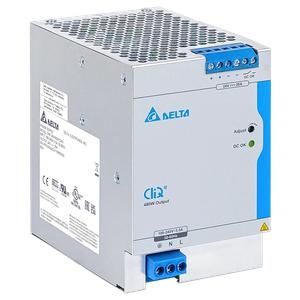

Delta DRP-24V480W1CBN 20A 24V DIN Rail Power Supply
The Delta DRP-24V480W1CBN is a robust DIN Rail CliQ III Series 20A 24V power supply designed for industrial automation, factory control panels, and process equipment. It provides 20A output current at 24V with 480W power, supporting a wide input voltage range of 88–264Vac and frequency compatibility of 47–63Hz. Manufactured by Delta industrial automation products, this model is part of the Delta power supply solutions and belongs to the DIN Rail CliQ III series, offering stable and reliable DC power for demanding industrial environments.
| Brand | Delta |
| Product Type | SMPS |
| Product | DRP-24V480W1CBN |
Delta 3.8A 91W DIN Rail Power Supply DRP-24V100W1NN Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 20A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28Vdc |
| Output Power | 480W |
| Line Regulation | 0.5% (@ 88-264Vac input, 100% load) |
| Load Regulation | 1.0% (@ 88-264Vac input, 0-100% load) |
| PARD | 100mVpp Max. |
| Start-up Time | 400ms Max. @ 24V, 20A |
| Hold-up Time | 21ms Typ. @ 24V, 20A 15ms Min. @ 24V, 20A |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 0-100% load Slew rate 0.1A/µs (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle) |
| Start-up with Capacitive Loads | 10,000µF Max. |
| Rise Time | 150ms Max. @ 24V, 20A |
| Power Boost Duration | 5 seconds Min. |
| Power Boost Recovery Time | 18 seconds Typ. |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 88-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 100-375Vdc (Continuously operating, with safety approval according to IEC/EN/UL 60950-1) 88-100Vdc (With power de-rating) |
| Input Current | 4.52A Typ. @ 115 Vac, 2.31A Typ. @ 230Vac |
| Efficiency at 100% load | 92.55% Typ. @ 115Vac, 94.00% Typ. @ 230Vac |
| Inrush Current | (Cold Start) 12.8A Typ. @ 115Vac, 30.6A Typ. @ 230Vac, 40A Max. @ 115Vac, 80A Max. @ 230Vac |
| Power Factor at 100% load | 0.99 Typ. @ 115Vac, 0.96 Typ. @ 230Vac, 0.99 Min. @ 115Vac, 0.95 Min. @ 230Vac |
| Leakage Current | (Enclosure to Neutral) < 0.49mA / 1.12mA: 110Vac, 50Hz, TN/TT system / IT system < 0.58mA / 1.29mA: 132Vac, 50Hz, TN/TT system / IT system < 1.12mA / 2.55mA: 264Vac, 50Hz, TN/TT system / IT system |
| Power Dissipation | At 24V, 0A: 4.19W Typ. @ 115Vac, 4.40W Typ. @ 230Vac, 10.0W Max. @ 115Vac, 11.0W Max. @ 230Vac At 24V, 20A: 38.73W Typ. @ 115Vac, 30.85W Typ. @ 230Vac, 47.73W Max. @ 115Vac, 36.13W Max. @ 230Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Input Terminal | 3 Pins (Rated 600V/35A) |
| Output Terminal | 4 Pins (Rated 300V/28A) |
| Signal Terminal | 2 Pins (Rated 300V/28A) |
| Noise Sound Pressure Level (SPL) | < 25dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input: AWG 18-8 Output: AWG 14-12 Signal: AWG 14-12 |
| Unit Weight | 1.20 kg (2.65 lb) |
| Operating Temperature | -25°C to +70°C (Cold start -40°C) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | Vertical Mounting: AC input > 60°C de-rate by 2.5% / °C DC input > 50°C de-rate by 2.5% / °C Horizontal Mounting: > 40°C de-rate by 2.5% / °C Input Voltage: AC input < 100Vac de-rate by 0.83% / V DC input < 100Vdc de-rate by 1.67% / V |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 9 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions |
| Operating Altitude | 0 to 5,000 Meters (16,400 ft.) |
| Pollution Degree | 2 |
| Bump Test (Operating) | IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total |
| Over Voltage Category | III (operating altitude 2,500 Meters) II (operating altitude 5,000 Meters) According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part) |
The Delta DRP-24V480W1CBN is ideal for integration into industrial control cabinets, automation systems, and heavy-duty machinery requiring stable 24V DC power with continuous performance. Its DIN rail mounting ensures organized and safe installation, while the 3-pin input and 4-pin output terminals provide secure connections to maintain uninterrupted operation. The power supply guarantees consistent output, supporting efficient operation of process equipment and industrial automation systems.
Engineered for extreme industrial conditions, the unit operates between -25°C to +70°C with cold start capability to -40°C and storage support up to +85°C. The green LED (DC OK) offers quick status verification, simplifying monitoring and troubleshooting. Its input terminals are rated 600V/35A, and output terminals 300V/28A, delivering high reliability and protection for demanding operational conditions.
For industrial engineers and system integrators, the Delta DRP-24V480W1CBN provides dependable 20A 24V power with 480W capacity, ensuring operational stability for automation and control systems. Compact, reliable, and durable, it outperforms conventional power supplies. Secure a quote today for competitive pricing and dedicated support, guaranteeing continuous industrial operations without compromise.
