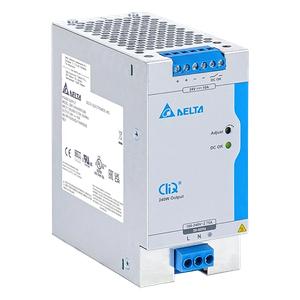

Delta DRP-24V240W1CBN 10A 240W 24V DIN Rail Power Supply
The Delta DRP-24V240W1CBN is a high-performance 240W 24V DIN Rail Power Supply designed for industrial automation, machine control, and process equipment. It delivers 10A output current at 24V, supporting a wide input range of 88–264Vac and frequency compatibility of 47–63Hz. Manufactured by Delta industrial automation products, this power supply is part of the Delta power supply solutions and belongs to the DIN Rail CliQ III series, providing compact, reliable, and efficient DC power for automation systems.
| Brand | Delta |
| Product Type | SMPS |
| Product | DRP-24V240W1CBN |
Delta 3.8A 91W DIN Rail Power Supply DRP-24V100W1NN Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 10A |
| Output Voltage | 24V |
| Output Voltage Adjustment Range | 24-28Vdc |
| Output Power | 240W |
| Line Regulation | 0.5% (@ 88-264Vac input, 100% load) |
| Load Regulation | 1% (@ 88-264Vac input, 0-100% load) |
| PARD | 100mVpp Max. |
| Start-up Time | 1,000ms Max. @ 24V, 10A |
| Hold-up Time | 24ms Typ. @ 24V, 10A 20ms min. @ 24V, 10A |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 5% @ 0-100% load Slew rate 0.1A/µs (@ 5Hz, 50Hz & 1kHz, 50% Duty Cycle) |
| Start-up with Capacitive Loads | 10,000µF |
| Rise Time | 60ms Max. @ 24V, 10A |
| Power Boost Duration | 5 seconds Min. |
| Power Boost Recovery Time | 18 seconds Typ. |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 88-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 100-375Vdc (Continuously operating, with safety approval according to IEC/EN/UL 60950-1) 88-100Vdc (With power de-rating) |
| Input Current | 2.27A Typ. @ 115 Vac, 1.19A Typ. @ 230Vac |
| Efficiency at 100% load | 92.70% Typ. @ 115Vac, 94.48% Typ. @ 230Vac |
| Inrush Current | (Cold Start) 11.0A Typ. @ 115Vac, 24.4A Typ. @ 230Vac, 33A Max. @ 115Vac, 65A Max. @ 230Vac |
| Power Factor at 100% load | 0.99 Typ. @ 115Vac, 0.93 Typ. @ 230Vac, 0.99 Min. @ 115Vac, 0.93 Min. @ 230Vac |
| Leakage Current | (Enclosure to Neutral) < 0.25mA / 0.80mA: 110Vac, 50Hz, TN/TT system / IT system < 0.38mA / 1.00mA: 132Vac, 50Hz, TN/TT system / IT system < 0.74mA / 2.00mA: 264Vac, 50Hz, TN/TT system / IT system |
| Power Dissipation | At 24V, 0A: 3.54W Typ. @ 115Vac, 2.90W Typ. @ 230Vac, 6.0W Max. @ 115Vac, 6.0W Max. @ 230Vac At 24V, 10A: 18.97W Typ. @ 115Vac, 14.05W Typ. @ 230Vac, 21.0W Max. @ 115Vac, 16.0W Max. @ 230Vac |
| Case Chassis / Cover | Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Input Terminal | 3 Pins (Rated 600V/35A) |
| Output Terminal | 4 Pins (Rated 300V/28A) |
| Signal Terminal | 2 Pins (Rated 300V/28A) |
| Noise Sound Pressure Level (SPL) | < 25dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input: AWG 18-8 Output: AWG 16-12 Signal: AWG 16-12 |
| Unit Weight | 0.84 kg (1.85 lb) |
| Operating Temperature | -25°C to +70°C (Cold start -40°C) |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | Vertical Mounting: > 60°C de-rate power by 2.5% / °C Horizontal Mounting: > 40°C de-rate power by 2.5% / °C Input Voltage: AC input < 100Vac de-rate power by 0.83% / V DC input < 100Vdc de-rate power by 1.67% / V |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, Half Sine Wave: 30G for a duration of 18ms; 3 times per direction, 9 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, Sine Wave: 10-500Hz; 3G peak; displacement of 0.35mm; 60 min per axis for all X, Y, Z directions |
| Operating Altitude | 0 to 5,000 Meters (16,400 ft.) |
| Pollution Degree | 2 |
| Bump Test (Operating) | IEC 60068-2-29, Half Sine Wave: 10G for a duration of 11ms, 1,000 times per direction, 6,000 times in total |
| Over Voltage Category | III (operating altitude 2,500 Meters) II (operating altitude 5,000 Meters) According to IEC/EN 62477-1 / EN 60204-1 (clearance and creepage distances) and IEC 62103 (safety part) |
The Delta DRP-24V240W1CBN 240W 24V DIN Rail Power Supply is commonly installed in industrial control panels, factory automation systems, and process equipment that require dependable DC power distribution. Its DIN rail mounting design allows organized installation, while the rated input and output terminals ensure secure and stable electrical connections. The compact size and robust construction make it ideal for continuous industrial operation in production environments.
Engineered for extreme conditions, this power supply operates within a temperature range of -25°C to +70°C with cold-start capability down to -40°C, and supports storage temperatures up to +85°C. The green LED (DC OK) provides instant visual confirmation of operational status, ensuring quick diagnostics and system monitoring. The 3-pin input (600V/35A) and 4-pin output (300V/28A) terminals offer reliable electrical connectivity and safety for demanding applications.
For engineers and industrial automation specialists, the Delta DRP-24V240W1CBN delivers consistent 10A output at 24V with 240W power, ensuring stable operation for control systems and machinery. Its high reliability, long-term durability, and efficient performance make it a trusted choice for industrial environments. Request a quote today to secure competitive pricing and dedicated support for this premium 240W 24V DIN Rail Power Supply, outperforming standard offerings from other dealers and distributors.
