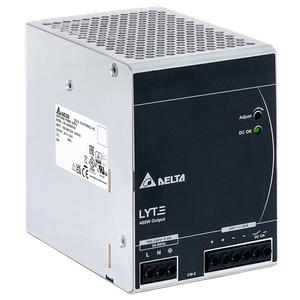

Delta DRL-24V480W1AS 480W 24V DIN Rail Power Supply
The Delta DRL-24V480W1AS is a high-performance 480W 24V DIN Rail Power Supply offering 20A output for industrial control panels, machine automation, and process equipment. It supports a nominal input voltage of 100-240Vac with an input range of 85-264Vac at 50-60Hz. Manufactured by Delta industrial automation products, this power supply is part of Delta power supply solutions and the LYTE Series DIN Rail Power Supplies, providing stable DC power for demanding industrial applications.
| Brand | Delta |
| Product Type | SMPS |
| Product | DRL-24V480W1AS |
Delta 480W 24V DIN Rail Power Supply DRL-24V480W1AS Technical Specifications:
| Specification | Value |
|---|---|
| Output Current | 20A |
| Output Voltage | 24V |
| Output Power | 480W |
| Output Voltage Adjustment Range | 22-28Vdc |
| Line Regulation | < 0.5% (@ 85-264Vac, 100% load) |
| Load Regulation | < 1.5% (0-100% load)@ > -10°C to +70°C < 2.0% ( 0-100% load) @ ≤ -10°C to -20°C |
| PARD | < 120mVpp @ > -10°C to +70°C < 240mVpp @ ≤ -10°C to -20°C |
| Start-up Time | 1000ms typ.@ 115Vac & 230Vac (100% load) |
| Hold-up Time | 10ms typ.@ 115Vac (100% load) 16ms typ.@ 230Vac (100% load) |
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 10% (2400mVpp) @ 85-264Vac input, 0-50% load, 50-100% load (Slew Rate: 0.1A/μs) |
| Start-up with Capacitive Loads | 8,000µF Max |
| Rise Time | 100ms typ. @ nominal input (100% load) |
| Nominal Input Voltage | 100-240Vac |
| Input Voltage Range | 85-264Vac |
| Nominal Input Frequency | 50-60Hz |
| Input Frequency Range | 47-63Hz |
| DC Input Voltage Range | 120-375Vdc |
| Input Current | 5.4A typ.@115Vac, 2.7A typ.@ 230Vac |
| Efficiency at 100% load | 85% typ. @ 115Vac, 88% typ. @ 230Vac |
| Inrush Current | 40A typ.@115Vac, 80A typ.@ 230Vac |
| Leakage Current | < 1mA @ 264Vac |
| Case Chassis / Cover | SGCC / Aluminium |
| Indicator | Green LED (DC OK) |
| Cooling System | Convection |
| Unit Weight | 1.30 kg (2.87 lb) |
| Vibration (Operating) | IEC 60068-2-6, Sine Wave: 10Hz to 500Hz @ 19.6m/s² (2G peak); displacement of 0.35mm; 10 min per cycle, 60 min for all X, Y, Z direction |
| Shock Test (Operating) | IEC 60068-2-27, 27, Half Sine Wave: 4G for duration of 22ms; 3 time per direction, 9 times in total |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power De-rating | > 40°C de-rate power by 1.67% / °C @ 115Vac (90-229Vac) > 50°C de-rate power by 2.5% / °C @ 230Vac (230-264Vac) < 100Vac de-rate power by 1% / Vac |
| Operating Humidity | 5 to 95% RH (Non-Condensing) |
| Shock Test (Non-Operating) | IEC 60068-2-27, 27, Half Sine Wave: 50G for duration of 22ms; 3 times per direction, 9 times in total |
| Vibration (Non-Operating) | IEC 60068-2-6, Random: 5Hz to 500Hz; 2.09Grms; 20 min per axis for all X, Y, Z directions |
| Operating Altitude | 0 to 5,000 Meters (16,400 ft.) |
| Pollution Degree | 2 |
| Power Dissipation | 0% load: 5W @ 115Vac 4W @ 230Vac 100% load: 50W @ 115Vac 40W @ 230Vac |
| Input Terminal | 3 Pins (Rated 600V/35A) |
| Output Terminal | 6 Pins (Rated 300V/28A) |
| Signal Terminal | 6 Pins (Rated 300V/28A) |
| Noise Sound Pressure Level (SPL) | < 25dBA |
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 |
| Wire | Input: AWG 16-12 Output: AWG 16-14 (2 pieces of wire), AWG 12 Signal: AWG 16-12 |
The Delta DRL-24V480W1AS is commonly used in industrial automation, control systems, and equipment requiring dependable 24V DC power. Its DIN rail mounting design allows organized installation, while the Green LED DC OK indicator offers instant operational feedback. Both input and output terminals are engineered for secure connections, handling heavy-duty current loads effectively.
Designed for harsh industrial environments, this 480W 24V DIN Rail Power Supply operates reliably across temperatures from -20°C to +70°C, with storage tolerance between -40°C and +85°C. It ensures consistent DC output even under variable input conditions, protecting critical automation components and maintaining uninterrupted system performance during production operations.
For industries seeking high-capacity, durable, and reliable DC power, the Delta DRL-24V480W1AS offers 20A output with efficient performance and long-term operational stability. Get a quote today to secure competitive pricing and dedicated support, making it an ideal solution for industrial control panels, factory automation, and process equipment requiring continuous 24V DC power.
