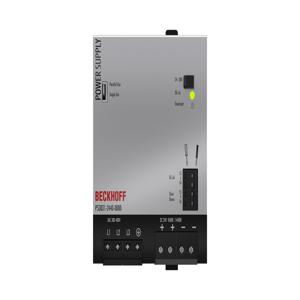

PS3031-4810-0001 - Beckhoff Power Supply
Technical Specifications of Beckhoff Power Supply PS3031-4810-0001:
| Brand | Beckhoff |
| Product Type | Power Supply |
| Product | PS3031-4810-0001 |
PS3031-4810-0001 Beckhoff Power Supply Technical Specifications
| Specification | Value |
|---|
| Input voltage | 3 AC 380..480 V |
| Wide-range input | yes |
| Input current | typ. 0.79 A at 400 V AC |
| Switch-on current limiter | yes |
| Mains frequency | 50..60 Hz |
| Starting current | typ. 3 A peak at 400 V AC |
| Output voltage | 48 V DC |
| Adjustment range | 48...56 V DC |
| Output current | 10 A |
| Output | 480 W |
| Efficiency | approx. 95.4% |
| Operating temperature | -25...+70°C |
| Shock resistance | conforms to EN 60068-2-27 |
| Vibration resistance | conforms to EN 60068-2-6 |
| Weight | approx. 870 g |
| Approvals/markings | CE, UL508 |
| Protection rating | IP20 |
| Housing - Dimensions (W x H x D) | 65 mm x 124 mm x 127 mm |
| Housing - Material | aluminum |
| Housing - Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Housing - Wiring | spring-loaded technique |
| Housing - Connection cross-section | e*: 0.5â¦6 mm²,f*: 0.5â¦4 mm²,a*: 0.5â¦4 mm² |
| Housing - Connection cross-section AWG | AWG20-10 |
| Housing - Stripping length | 9...10 mm |
| Harmonic correction (PFC) | active |
| Extra power | 50%/4 s |
| Precise fuse release | yes |
| Outpout power for 4 s | 720 W |
| Overload LED | yes |
