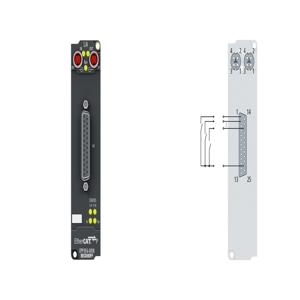

EPP1816-0008 - Beckhoff Industrial Housing
Technical Specifications of Beckhoff Industrial Housing EPP1816-0008:
| Brand | Beckhoff |
| Product Type | Industrial Housing |
| Product | EPP1816-0008 |
EPP1816-0008 Beckhoff Industrial Housing Technical Specifications
| Specification | Value |
|---|
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, P-coded, shielded |
| Specification | EN 61131-2, type 1/3 |
| Number of inputs | 16 |
| Input connections | D-sub socket, 25-pin, UNC4-40 |
| Nominal input voltage | 24 V DC (-15%/+20%) |
| Input filter | 10 µs |
| "0" signal voltage | -3â¦+5 V (EN 61131-2, type 3) |
| "1" signal voltage | 11â¦30 V (EN 61131-2, type 3) |
| Input current | typ. 3 mA (EN 61131-2, type 3) |
| Sensor supply | from control voltage, max. 0.5 A, short-circuit proof in total |
| Current consumption from US | typ. 100 mA |
| Operating temperature | -25...+60°C |
| Storage temperature | -40...+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL |
| Housing - Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Housing - Material | PA6 (polyamide) |
| Housing - Installation | 2 fixing holes 3.5 mm diameter for M3 |
| Weight | approx. 165 g |
| Electrical isolation | 500 V |
